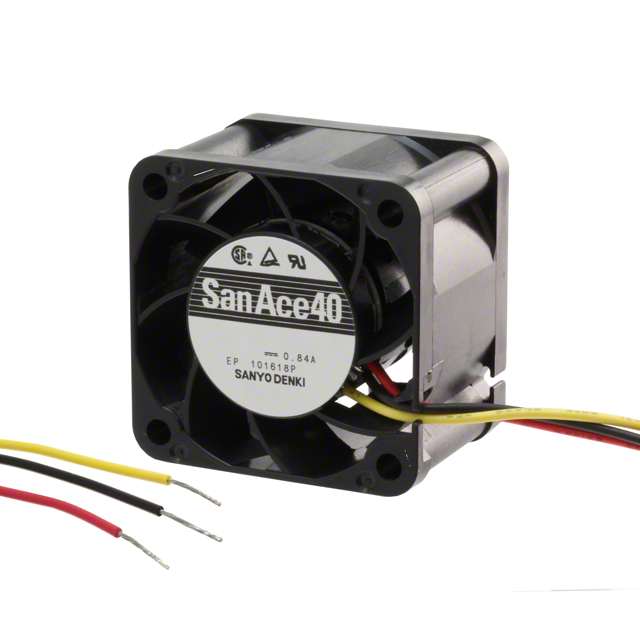

9WF0424F6D01

Active

Sanyo Denki America Inc.

FAN AXIAL 40X20MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 40X20MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Weight	Weight	Material - Frame	Noise	Width [y]	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Fan Type	Static Pressure	Static Pressure	RPM	Approval Agency	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Features	Power (Watts)	Voltage - Rated	Termination	Operating Temperature [Max]	Ingress Protection
Sanyo Denki America Inc. 9WF0424F6D01	0.111 lb	50.35 g	Plastic	37 dB	20 mm	Plastic	0.076 A	40000 Hrs	Tubeaxial	62.8 Pa	0.252 in H2O	11000 RPM	CSA TUV UL	40 mm	Square	40 mm	Ball	-20 °C	70 °C	-20 C	70 °C	7.8 CFM	0.218 m³/min	Locked Rotor Sensor	1.82 W	24 VDC	3 Wire Leads
Sanyo Denki America Inc. 9WF0424H6D01	0.111 lb	50.35 g	Plastic	42 dB	20 mm	Plastic	110 mA	40000 Hrs	Tubeaxial	89.9 Pa	0.361 in H2O	13100 RPM	CSA TUV UL	40 mm	Square	40 mm	Ball	-20 °C	70 °C	-20 C	70 °C	9.2 CFM	0.258 m³/min	Locked Rotor Sensor	2.64 W	24 VDC	3 Wire Leads
Sanyo Denki America Inc. 9WF0424H602	0.111 lb	50.35 g	Plastic	42 dB	20 mm	Plastic	110 mA	40000 Hrs	Tubeaxial	89.9 Pa	0.361 in H2O	13100 RPM	CSA TUV UL	40 mm	Square	40 mm	Ball	-10 °C		-10 °C	70 °C	9.2 CFM	0.258 m³/min		2.64 W	24 VDC	2 Wire Leads	70 °C	Oil Resistant
Sanyo Denki America Inc. 9WF0424F601	0.111 lb	50.35 g	Plastic	37 dB	20 mm	Plastic	0.076 A	40000 Hrs	Tubeaxial	62.8 Pa	0.252 in H2O	11000 RPM	CSA TUV UL	40 mm	Square	40 mm	Ball	-20 °C	70 °C	-20 C	70 °C	7.8 CFM	0.218 m³/min	Speed Sensor (Tach)	1.82 W	24 VDC	3 Wire Leads		Oil Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 7.8 CFM (0.218m³/min) 3 Wire Leads
