307-034-459-203

Active

EDAC Inc.

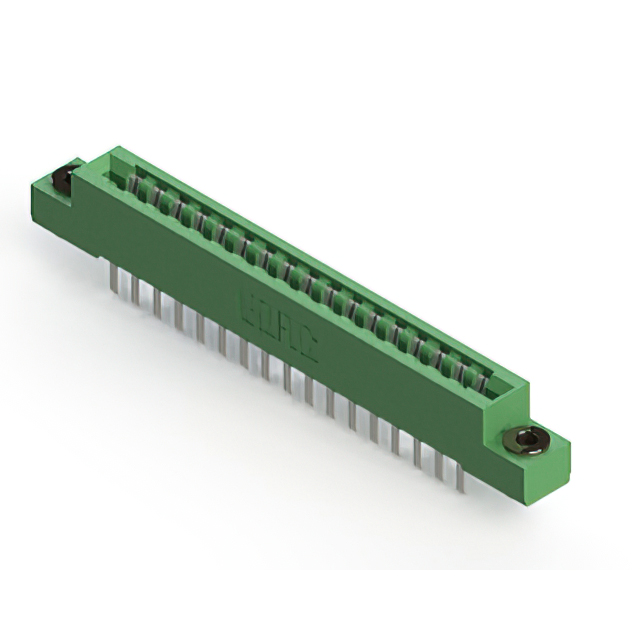

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-034-459-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-034-459-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

307-034 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Features	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Pitch [x]	Pitch [x]	Termination	Contact Type	Number of Positions	Read Out	Card Type	Contact Finish	Number of Rows	Color	Mounting Type	Contact Material	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]
EDAC Inc. 307-034-558-268	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Card Guides	10 Áin	0.25 Ám	2	0.156 in	3.96 mm	Solder Wire Wrap	Semi Bellows	34	Dual	Non Specified - Dual Edge	Gold	2	Green	Through Hole Right Angle	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female
EDAC Inc. 307-034-460-268	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic				2	0.156 in	3.96 mm	Solder	Semi Bellows	34	Dual	Non Specified - Dual Edge	Tin	2	Green	Board Edge Straddle Mount	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female
EDAC Inc. 307-034-553-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic		10 Áin	0.25 Ám	1	0.156 in	3.96 mm	Solder	Semi Bellows	68	Dual	Non Specified - Dual Edge	Gold	2	Green	Through Hole Right Angle	Copper Alloy	Floating Bobbin Flush Mount	-40 °C	105 ░C	Female	0.116 in	2.95 mm	34
EDAC Inc. 307-034-459-207	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic				2	0.156 in	3.96 mm	Solder	Semi Bellows	34	Dual	Non Specified - Dual Edge	Tin	2	Green	Through Hole Right Angle	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	-40 °C	105 ░C	Female
EDAC Inc. 307-034-458-178	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Card Guides			1	0.156 in	3.96 mm	Solder	Semi Bellows	34	Single	Non Specified - Single Edge	Tin	1	Green	Through Hole Right Angle	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female			34
EDAC Inc. 307-034-500-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic		10 Áin	0.25 Ám	2	0.156 in	3.96 mm	Solder Eyelet(s)	Semi Bellows	34	Dual	Non Specified - Dual Edge	Gold	2	Green	Through Hole	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female
EDAC Inc. 307-034-525-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic		10 Áin	0.25 Ám	1	0.156 in	3.96 mm	Solder	Semi Bellows	34	Single	Non Specified - Single Edge	Gold	1	Green	Through Hole	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female			34
EDAC Inc. 307-034-459-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic				2	0.156 in	3.96 mm	Solder	Semi Bellows	34	Dual	Non Specified - Dual Edge	Tin	2	Green	Through Hole Right Angle	Copper Alloy	Floating Bobbin Flush Mount	-40 °C	105 ░C	Female	0.116 in	2.95 mm
EDAC Inc. 307-034-459-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic				1	0.156 in	3.96 mm	Solder	Semi Bellows	34	Single	Non Specified - Single Edge	Tin	1	Green	Through Hole Right Angle	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	-40 °C	105 ░C	Female			34
EDAC Inc. 307-034-457-158	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Card Guides			1	0.156 in	3.96 mm	Solder	Semi Bellows	68	Dual	Non Specified - Dual Edge	Tin	2	Green	Through Hole Right Angle	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Female			34

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.21
Newark	Each	1	$ 15.88
		100	$ 13.19
		250	$ 12.14
		500	$ 11.29
		1000	$ 9.51

Description

General part information

307-034 Series

34 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
