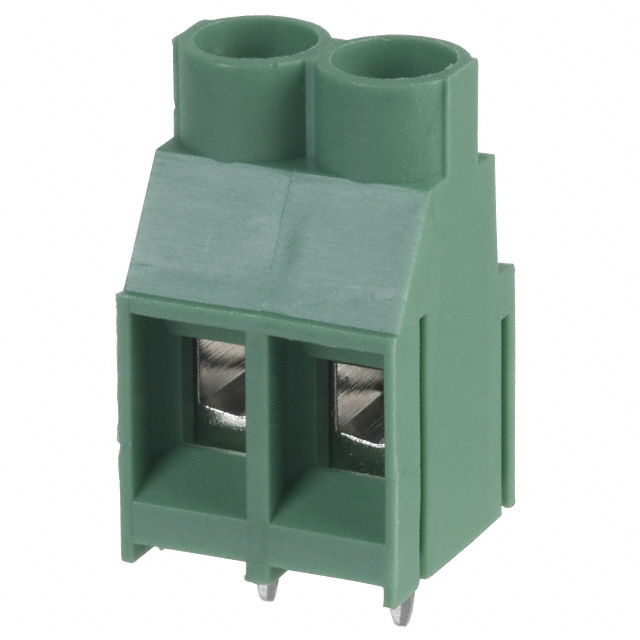

OSTT7020150

Active

On Shore Technology Inc.

TERM BLK 2P SIDE ENT 6.35MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 2P SIDE ENT 6.35MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OSTT7020150

Clamp Material - Plating	Brass
Color	Green
Contact Material - Plating [custom]	Brass
Current	25 A
Features	Interlocking (Side)
Housing Material	Thermoplastic
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.25 in
Pitch [x]	6.35 mm
Positions Per Level	2
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M3
Torque - Screw	1 Nm
Torque - Screw	8.9 Lb-In
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	10 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current	Mating Orientation	Clamp Material - Plating	Screw Material - Plating	Color	Features	Housing Material	Contact Material - Plating [custom]	Voltage	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Screw Thread	Positions Per Level	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels
On Shore Technology Inc. OSTT7024350	Through Hole	-30 ░C	105 ░C	25 A	Horizontal with Board	Brass	Steel Zinc Plated	Green	Interlocking (Side)	Thermoplastic	Brass	300 V	0.49 Nm	4.3 Lb-In	0.3 in	7.62 mm	M3	2	Screw - Rising Cage Clamp	12 AWG	24 AWG	1
On Shore Technology Inc. OSTT7020150	Through Hole	-30 ░C	105 ░C	25 A	Horizontal with Board	Brass	Steel Zinc Plated	Green	Interlocking (Side)	Thermoplastic	Brass	300 V	1 Nm	8.9 Lb-In	0.25 in	6.35 mm	M3	2	Screw - Rising Cage Clamp	10 AWG	24 AWG	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Wire to Board Terminal Block Horizontal with Board 0.250" (6.35mm) Through Hole
