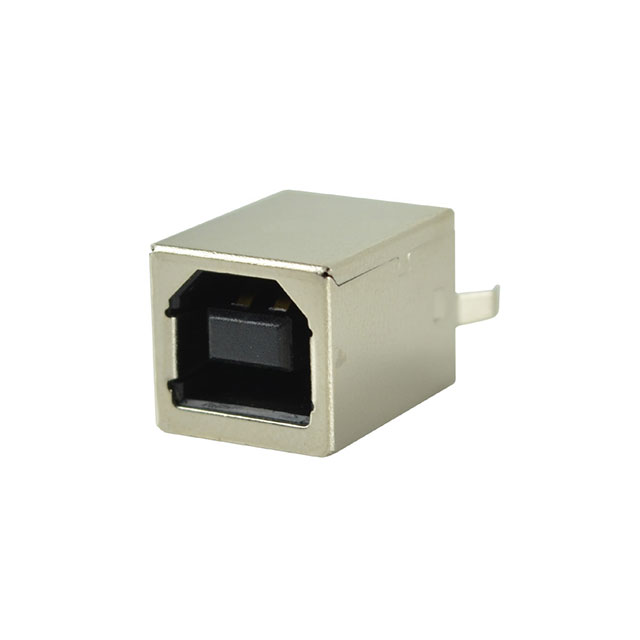

UJ2-BV-1-TH
ActiveCUI Devices
CONN RCPT USB2.0 TYPEB 4POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ2-BV-1-TH
ActiveCUI Devices
CONN RCPT USB2.0 TYPEB 4POS VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ2-BV-1-TH |
|---|---|
| Connector Type | USB-B |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.97 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.79 | |||
| 40 | $ 0.77 | |||
| 100 | $ 0.74 | |||
| 300 | $ 0.67 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.54 | |||
| 2400 | $ 0.48 | |||
Description
General part information
UJ2-BV Series
USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole
