B1010SP0-EVB-2

Active

CEL

B1010SP0-2X BLUETOOTH SMART MINI

Search across all available documentation for this part.

Active

CEL

B1010SP0-2X BLUETOOTH SMART MINI

Technical Specifications

Parameters and characteristics for this part

Specification	B1010SP0-EVB-2

Contents	Cable(s), Board(s)
For Use With/Related Products	B1010SP0
Frequency	2.4 GHz
Supplied Contents	Cable(s), Board(s)
Type	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
Utilized IC / Part	B1010SP0

Part	Frequency	Utilized IC / Part	For Use With/Related Products	Supplied Contents	Contents	Type	Antenna Type	Serial Interfaces	Sensitivity	RF Family/Standard	Power - Output	Current - Transmitting [Max]	Current - Transmitting [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Current - Receiving [Max]	Current - Receiving [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Transmitting	Current - Receiving	Memory Size
CEL B1010SP0-EVB-2	2.4 GHz	B1010SP0	B1010SP0	Board(s) Cable(s)	Board(s) Cable(s)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
CEL B1010SP0-1-R	2.4 GHz	EM357					Integrated Trace	I2C SPI UART	-94 dBm	Bluetooth	8 dBm	54 mA	17 mA	Surface Mount	3.6 V	1.8 V	Bluetooth v4.0	24 mA	17 mA	-30 ░C	85 °C	Module
CEL B1010SP0-2-R	2.4 GHz	EM357					Integrated Trace	I2C SPI UART	-94 dBm	Bluetooth	8 dBm			Surface Mount	3.6 V	1.8 V	Bluetooth v4.0			-30 ░C	85 °C	Module	54 mA	39 mA	1 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 123.88

General part information

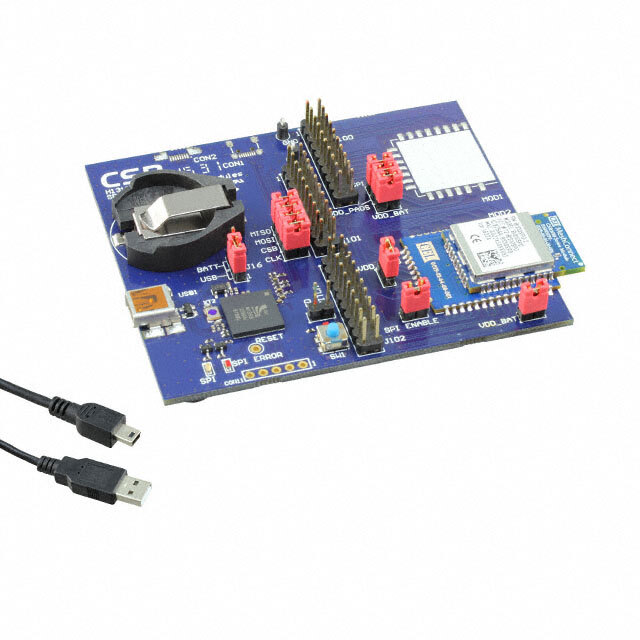

B1010SP0 MeshConnect™ Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) 2.4GHz Evaluation Board
