AOZ1361DI-01

Obsolete

Alpha & Omega Semiconductor Inc.

IC PWR SWITCH P-CHAN 1:1 10DFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

IC PWR SWITCH P-CHAN 1:1 10DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ1361DI-01

Fault Protection	UVLO, Current Limiting (Adjustable), Over Temperature
Features	Slew Rate Controlled, Auto Restart, Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel

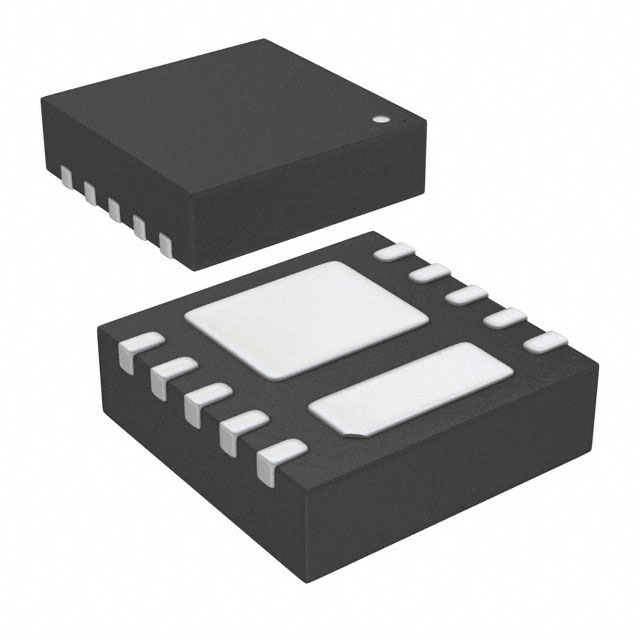

Package / Case	10-WDFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	22 mOhm
Supplier Device Package	10-DFN (4x4)
Switch Type	General Purpose
Voltage - Load [Max]	28 V
Voltage - Load [Min]	4.5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Package / Case	Number of Outputs	Fault Protection	Mounting Type	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output [custom]	Input Type	Switch Type	Output Configuration	Output Type	Voltage - Load [Max]	Voltage - Load [Min]	Rds On (Typ)	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Features	Supplier Device Package
Alpha & Omega Semiconductor Inc. AOZ1361DI-01	10-WDFN Exposed Pad	1	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount		1:1	Non-Inverting	General Purpose	High Side	P-Channel	28 V	4.5 V	22 mOhm	On/Off	85 °C	-40 °C	Auto Restart Slew Rate Controlled Status Flag	10-DFN (4x4)
