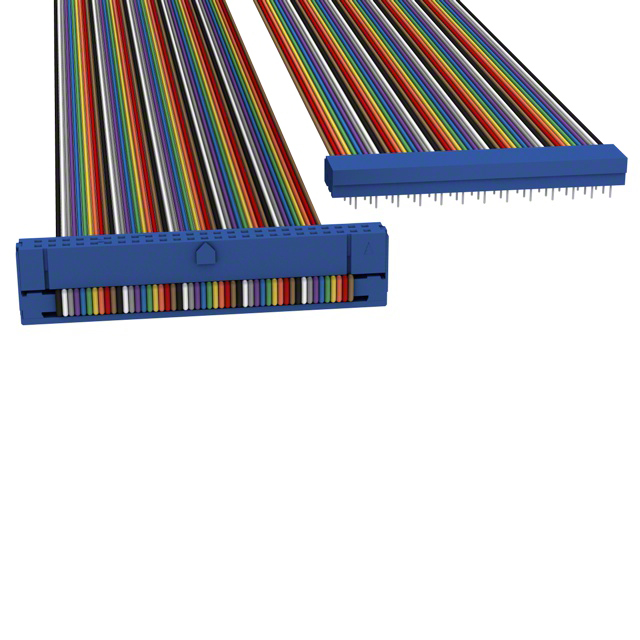

C3DPS-5006M

Active

CW Industries

IDC CABLE - CKR50S/AE50M/CPC50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR50S/AE50M/CPC50S

Technical Specifications

Parameters and characteristics for this part

Specification	C3DPS-5006M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to PCB
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	50
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Usage	Number of Positions	Length	Length	Length	Cable Termination	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Color	Shielding	Contact Finish	Length [x]	Length [x]
CW Industries C3DPS-5006M	Polarizing Key Strain Relief	2.54 µm	100 µin	Socket to PCB	Board In	50	152.4 mm	6 "	0.5 '	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple Ribbon	Unshielded	Tin
CW Industries C3DPS-5006G	Polarizing Key Strain Relief	2.54 µm	100 µin	Socket to PCB	Board In	50	152.4 mm	6 "	0.5 '	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm		Unshielded	Tin
CW Industries C3DPS-5018G	Polarizing Key Strain Relief	2.54 µm	100 µin	Socket to PCB	Board In	50				IDC	0.1 in	2.54 mm	0.05 "	1.27 mm		Unshielded	Tin	457.2 mm	1.5 ft
CW Industries C3DPS-5036G	Polarizing Key Strain Relief	2.54 µm	100 µin	Socket to PCB	Board In	50				IDC	0.1 in	2.54 mm	0.05 "	1.27 mm		Unshielded	Tin	914.4 mm	3 ft
CW Industries C3DPS-5018M	Polarizing Key Strain Relief	2.54 µm	100 µin	Socket to PCB	Board In	50				IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple Ribbon	Unshielded	Tin	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Cable Assembly Rectangular Socket to PCB 0.500' (152.40mm, 6.00")
