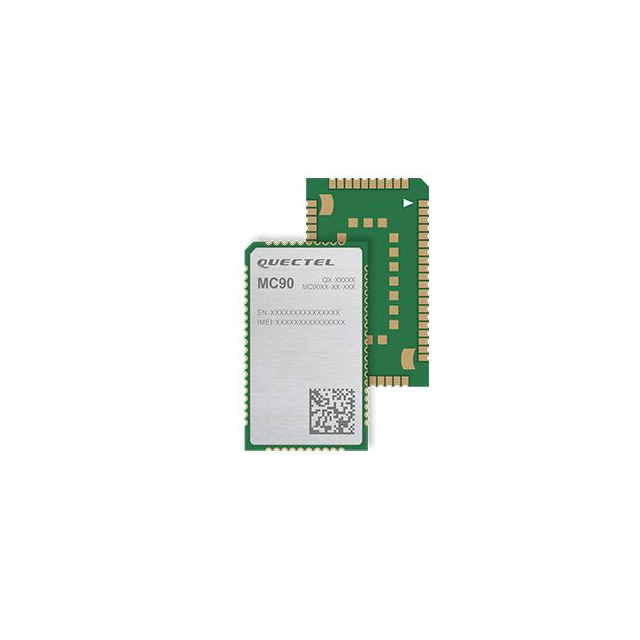

MC90CA-04-STD

Obsolete

Quectel

RF TXRX MOD NAVIGATION WIFISMD

Deep-Dive with AI

Search across all available documentation for this part.

MC90CA-04-STD

Obsolete

Quectel

RF TXRX MOD NAVIGATION WIFISMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MC90CA-04-STD

Antenna Type	Antenna Not Included
Current - Receiving	1.2 mA
Data Rate	85.6 kbps
Frequency	1800 MHz, 1900 MHz, 900 MHz, 2.4 GHz, 850 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Protocol	GLONASS, GNSS, Galileo, 802.11b/g/n, GPS
RF Family/Standard	Navigation, WiFi
Sensitivity	-167 dBm
Serial Interfaces	UART, PCM, ADC, GPIO
Voltage - Supply [Max]	4.6 V
Voltage - Supply [Min]	3.3 V

MC90 Series

Part	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Mounting Type	Antenna Type	Package / Case	RF Family/Standard	Protocol	Data Rate	Serial Interfaces	Frequency
Quectel MC90CA-04-STD	-167 dBm	4.6 V	3.3 V	85 °C	-40 °C	1.2 mA	Surface Mount	Antenna Not Included	Module	Navigation WiFi	802.11b/g/n Galileo GLONASS GNSS GPS	85.6 kbps	ADC GPIO PCM UART	2.4 GHz 850 MHz 900 MHz 1800 MHz 1900 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MC90 Series

Navigation, WiFi 802.11b/g/n, Galileo, GLONASS, GPS, GNSS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available
