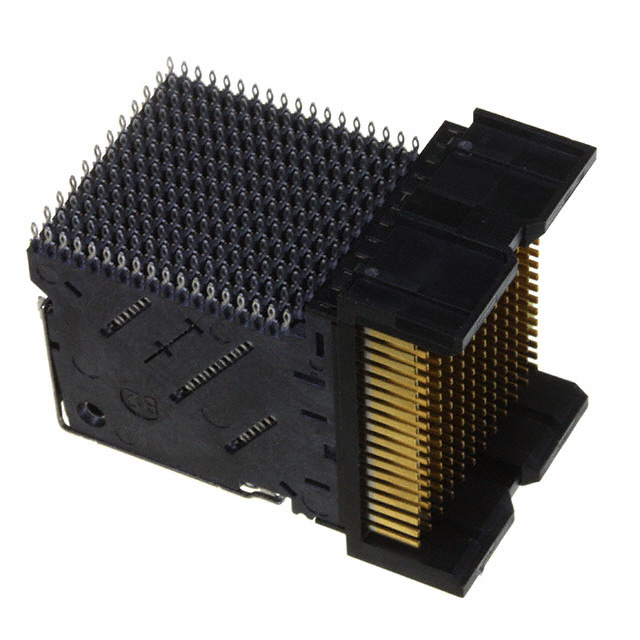

10077555-101LF

Obsolete

Amphenol ICC (FCI)

CONN HEADER HD 216POS EDGE MNT

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN HEADER HD 216POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	10077555-101LF

Color	Black
Connector Style	High Density (HDC, HDI, HPC)
Connector Type	Header, Male Pins
Connector Usage	Backplane
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	72 Ground, 72 Signal Pairs
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	12
Number of Positions	216
Number of Positions Loaded	All
Number of Rows [custom]	18
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit

Part	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color	Connector Usage	Contact Layout, Typical	Termination	Material Flammability Rating	Number of Columns	Connector Style	Mounting Type	Contact Finish	Connector Type	Number of Positions	Number of Rows [custom]
Amphenol ICC (FCI) 10077555-101LF	All	0.76 Ám	30 Áin	0.071 in	1.8 mm	Black	Backplane	72 Ground 72 Signal Pairs	Press-Fit	UL94 V-0	12	High Density (HDC HDI HPC)	Board Edge Right Angle Through Hole	Gold or Gold GXT™	Header Male Pins	216	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

216 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Black High Density (HDC, HDI, HPC)
