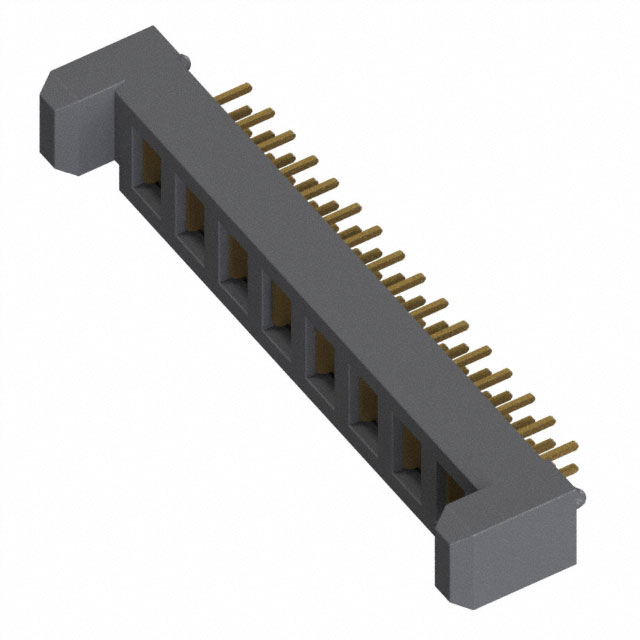

UPS-08-04.0-01-L-V

Active

Samtec Inc.

CONN RCPT 8POS 3.81MM PCB SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 8POS 3.81MM PCB SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	UPS-08-04.0-01-L-V

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Current Rating (Amps)	20 A
Fastening Type	Latch Lock
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Termination	Solder
Voltage Rating	530 V

Part	Number of Rows	Connector Type	Contact Material	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Mounting Type	Material - Insulation	Fastening Type	Pitch [x]	Pitch [x]	Number of Positions	Color	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features
Samtec Inc. UPS-08-04.0-01-L-V	1	Receptacle Female Blade Sockets	Beryllium Copper	530 V	10 Áin	0.25 Ám	20 A	Through Hole	Liquid Crystal Polymer (LCP)	Latch Lock	0.15 in	3.81 mm	8	Black	Gold	-55 °C	125 °C	Solder
Samtec Inc. UPS-08-07.0-01-L-V-LC	1	Receptacle Female Blade Sockets	Beryllium Copper	620 V	10 Áin	0.25 Ám	20 A	Through Hole	Liquid Crystal Polymer (LCP)		0.15 in	3.81 mm	8	Black	Gold	-55 °C	125 °C	Solder	Board Guide Board Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Receptacle, Female Blade Sockets Connector Solder 0.150" (3.81mm) Through Hole
