TPP206080-QFMR-S
Active3PEAK
STEP-DOWN DC-DC VOLTAGE CONVERTE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPP206080-QFMR-S
Active3PEAK
STEP-DOWN DC-DC VOLTAGE CONVERTE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPP206080-QFMR-S |
|---|---|
| Current - Output | 6 A |
| Frequency - Switching [Max] | 1.6 MHz |
| Frequency - Switching [Min] | 200 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

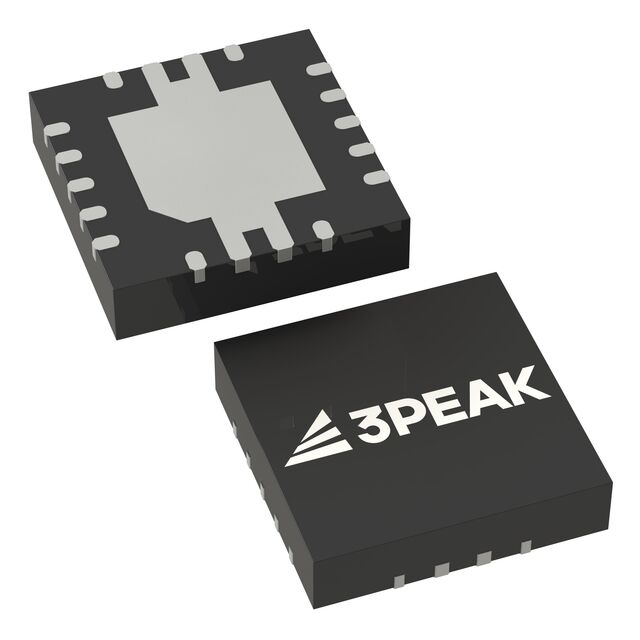

| Package / Case | 14-PowerVFQFN |
| Supplier Device Package | 14-QFN (3.5x3.5) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 17 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.52 | |
| 10 | $ 1.62 | |||
| 25 | $ 1.39 | |||
| 100 | $ 1.12 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.85 | |||
| Digi-Reel® | 1 | $ 2.52 | ||
| 10 | $ 1.62 | |||
| 25 | $ 1.39 | |||
| 100 | $ 1.12 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.85 | |||
| Tape & Reel (TR) | 4000 | $ 0.76 | ||
| 12000 | $ 0.71 | |||
Description
General part information
TPP206080 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 14-PowerVFQFN
