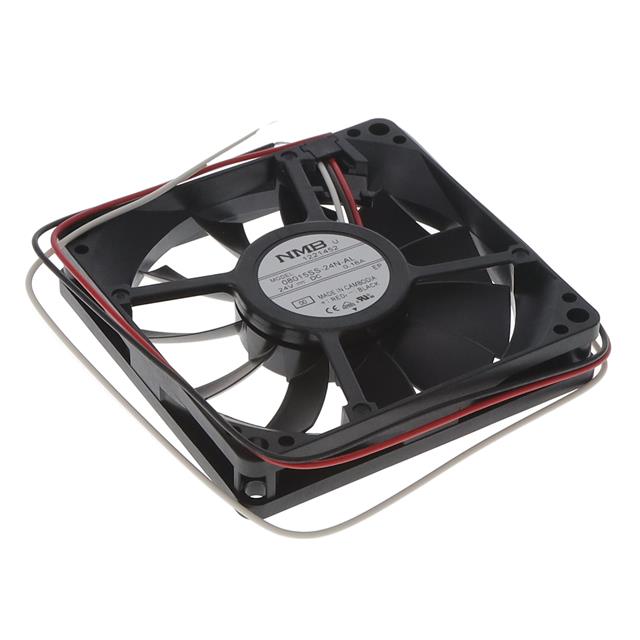

08015SS-24N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 15 MM, SLEEVE BEARING, 33.9 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

08015SS-24N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 15 MM, SLEEVE BEARING, 33.9 CFM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	08015SS-24N-AL-00

Air Flow	0.949 m³/min
Air Flow	33.9 CFM
Bearing Type	Sleeve
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	34 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.88 W
RPM	3100 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.14 in H2O
Static Pressure	34.9 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	12 VDC
Width [x]	15 mm

08015SS Series

Part	Noise	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Current Rating (Amps)	RPM	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Power (Watts)	Material - Blade	Features	Bearing Type	Material - Frame	Termination	Static Pressure	Static Pressure	Width [x]	Weight	Weight
NMB TECHNOLOGIES 08015SS-12M-AT-00	31 dB(A)	13.8 VDC	6 VDC	0.84 mł/min	30 CFM	80 mm	80 mm	40000 Hrs	150 mA	2800 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	12 VDC	1.8 W	Plastic	Auto Restart Speed Sensor (Tach)	Sleeve	Plastic	3 Wire Leads	29.9 Pa	0.12 in H2O	15 mm
NMB TECHNOLOGIES 08015SS-24N-AL-00	34 dB(A)	26.4 VDC	12 VDC	0.949 m³/min	33.9 CFM	80 mm	80 mm	40000 Hrs	120 mA	3100 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	24 VDC	2.88 W	Plastic	Auto Restart Locked Rotor Sensor	Sleeve	Plastic	3 Wire Leads	34.9 Pa	0.14 in H2O	15 mm
NMB TECHNOLOGIES 08015SS-24N-AT-00	34 dB(A)	26.4 VDC	12 VDC	0.952 m³/min	34 CFM	80 mm	80 mm	40000 Hrs	120 mA	3100 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	24 VDC	2.88 W	Plastic	Auto Restart Speed Sensor (Tach)	Sleeve	Plastic	3 Wire Leads	34.9 Pa	0.14 in H2O	15 mm	55.34 g	0.122 lb
NMB TECHNOLOGIES 08015SS-12M-AA-00	31 dB(A)	13.8 VDC	6 VDC	0.84 mł/min	30 CFM	80 mm	80 mm	40000 Hrs	150 mA	2800 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	12 VDC	1.8 W	Plastic	Auto Restart	Sleeve	Plastic	2 Wire Leads	29.9 Pa	0.12 in H2O	15 mm
NMB TECHNOLOGIES 08015SS-24N-AA-00	34 dB(A)	26.4 VDC	12 VDC	0.949 m³/min	33.9 CFM	80 mm	80 mm	40000 Hrs	120 mA	3100 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	24 VDC	2.88 W	Plastic	Auto Restart	Sleeve	Plastic	2 Wire Leads	34.9 Pa	0.14 in H2O	15 mm
NMB TECHNOLOGIES 08015SS-12L-AA-00	27.5 dB(A)	13.8 VDC	6 VDC	0.75 mł/min	26.8 CFM	80 mm	80 mm	40000 Hrs	110 mA	2500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	12 VDC	1.32 W	Plastic	Auto Restart	Sleeve	Plastic	2 Wire Leads	22.4 Pa	0.09 in H2O	15 mm
NMB TECHNOLOGIES 08015SS-12M-AL-00	31 dB(A)	13.8 VDC	6 VDC	0.84 mł/min	30 CFM	80 mm	80 mm	40000 Hrs	150 mA	2800 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	12 VDC	1.8 W	Plastic	Auto Restart Locked Rotor Sensor	Sleeve	Plastic	3 Wire Leads	29.9 Pa	0.12 in H2O	15 mm
NMB TECHNOLOGIES 08015SS-12L-AT-00	27.5 dB(A)	13.8 VDC	6 VDC	0.75 mł/min	26.8 CFM	80 mm	80 mm	40000 Hrs	110 mA	2500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	12 VDC	1.32 W	Plastic	Auto Restart Speed Sensor (Tach)	Sleeve	Plastic	3 Wire Leads	22.4 Pa	0.09 in H2O	15 mm
NMB TECHNOLOGIES 08015SS-12L-AL-00						80 mm	80 mm				Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	12 VDC		Plastic	Auto Restart Locked Rotor Sensor	Sleeve	Plastic	3 Wire Leads			15 mm
NMB TECHNOLOGIES 08015SS-24L-AA-00	27.5 dB(A)	27.6 VDC	12 VDC	0.75 mł/min	26.8 CFM	80 mm	80 mm	40000 Hrs	70 mA	2500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	24 VDC	1.68 W	Plastic	Auto Restart	Sleeve	Plastic	2 Wire Leads	22.4 Pa	0.09 in H2O	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.20
		10	$ 7.31
		25	$ 6.98
		50	$ 6.74
		100	$ 6.52
		250	$ 6.22
		500	$ 6.01
Newark	Each	1	$ 11.25
		5	$ 10.91
		10	$ 10.56
		25	$ 10.28
		50	$ 10.07

Description

General part information

08015SS Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Sleeve 33.9 CFM (0.949m³/min) 3 Wire Leads
