DML-16-A-H-T-A-TSMT-T/R

Active

Adam Tech

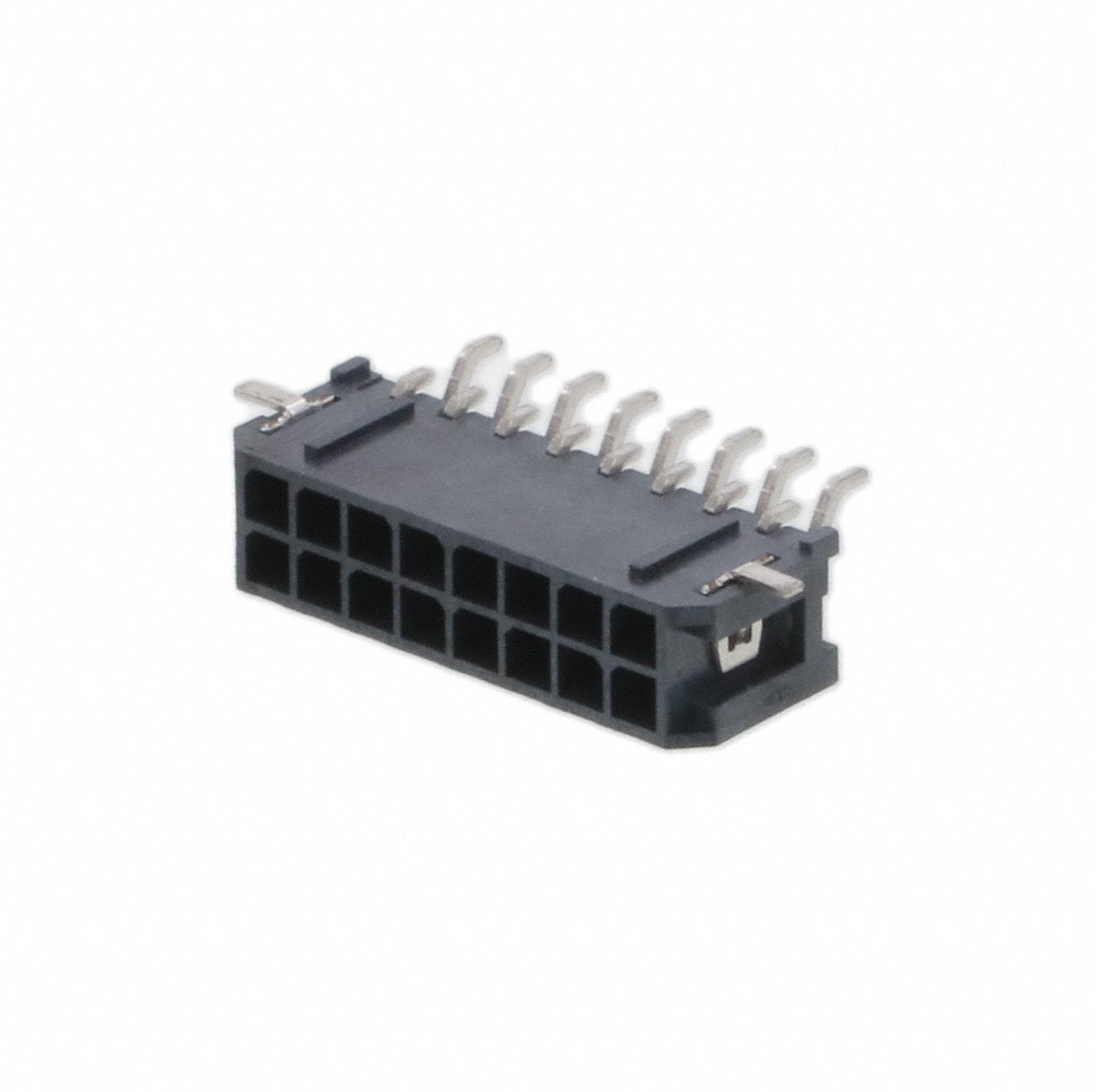

CONN HEADER SMD R/A 16POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

DML-16-A-H-T-A-TSMT-T/R

Active

Adam Tech

CONN HEADER SMD R/A 16POS 3MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DML-16-A-H-T-A-TSMT-T/R

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.289 "
Insulation Height	7.34 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

DML-16 Series

Part	Contact Material	Number of Rows	Insulation Height	Insulation Height	Contact Type	Shrouding	Contact Length - Post	Contact Length - Post [x]	Style	Material Flammability Rating	Contact Shape	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Insulation Material	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Current Rating (Amps)	Voltage Rating	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Adam Tech DML-16-A-H-T-A-SBL	Brass	2	7.37 mm	0.29 in	Male Pin	Shrouded - 4 Wall	3.2 mm	0.126 in	Board to Cable/Wire	UL94 V-0	Square	All	3 mm	0.118 in	Black	Thermoplastic	Tin	Through Hole Right Angle	0.118 in	3 mm	Solder	Header	Varies by Wire Gauge	250 VDC	Locking Ramp	16
Adam Tech DML-16-A-H-T-A-TSMT-T/R	Brass	2	7.34 mm	0.289 "	Male Pin	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	Square	All	3 mm	0.118 in	Natural	Thermoplastic	Tin	Surface Mount Right Angle	0.118 in	3 mm	Solder	Header		250 VAC	Locking Ramp	16	-25 °C	85 °C	Solder Retention	5 A
Adam Tech DML-16-A-H-T-A	Brass	2	6.86 mm	0.27 "	Male Pin	Shrouded - 4 Wall		0.125 in	Board to Cable/Wire	UL94 V-0	Square	All	3 mm	0.118 in	Black	Thermoplastic	Tin	Through Hole Right Angle	0.118 in	3 mm	Solder	Header	Varies by Wire Gauge	250 VDC	Locking Ramp	16					3.18 mm
Adam Tech DML-16-A-V-T-SMT-BL-PP-T/R	Brass	2			Male Pin	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	Square	All	3 mm	0.118 in	Black	Thermoplastic	Tin	Surface Mount	0.118 in	3 mm	Solder	Header		250 VAC	Locking Ramp	16	-25 °C	85 °C		5 A		9.91 mm	0.39 in
