Q-6800400031.5M
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-BNC PLG-JACK 4.9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-6800400031.5M
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-BNC PLG-JACK 4.9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-6800400031.5M |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 59.1 in |
| Length | 4.9 ft |
| Length | 1.5 m |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 59.50 | |
| 25 | $ 55.43 | |||
| 50 | $ 51.36 | |||
| 100 | $ 47.87 | |||
| 250 | $ 44.96 | |||
Description
General part information
Q-680040 Series

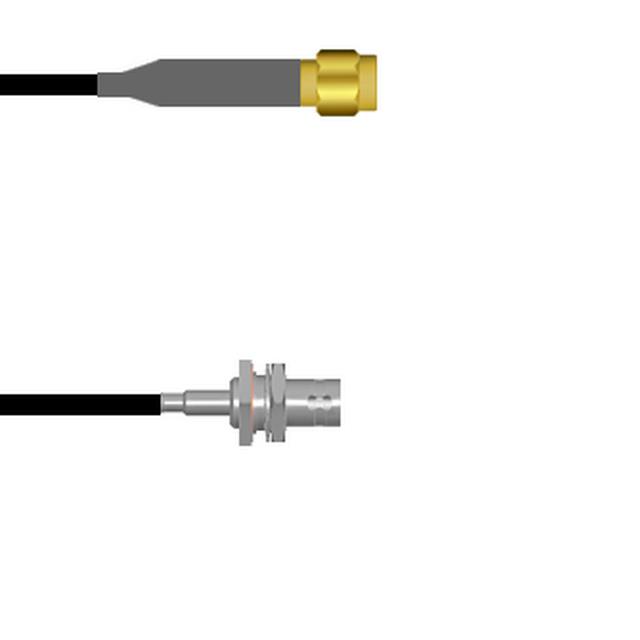

Cable Assembly Coaxial RP-SMA to BNC RG-174 59.1" (1.5m) 4.9'
Documents
Technical documentation and resources
No documents available
