19398100546

Active

HARTING Technology Group

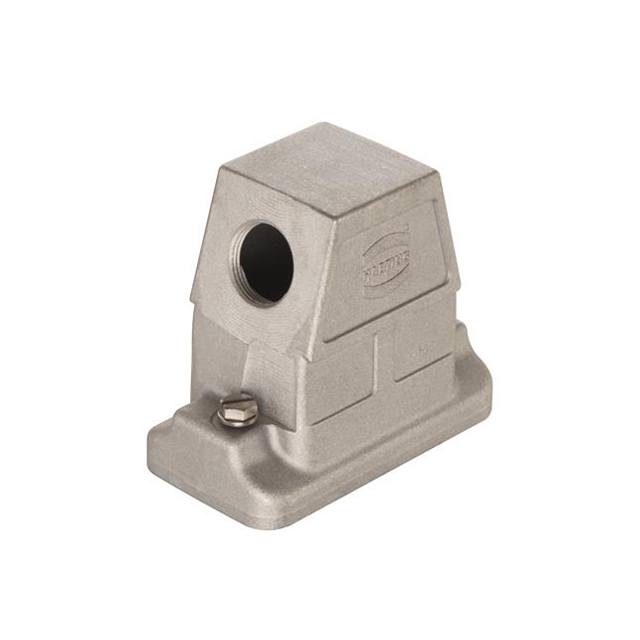

HAN 10 HP DIRECT EMC HOOD, SIDE ENTRY, M25

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 10 HP DIRECT EMC HOOD, SIDE ENTRY, M25

Technical Specifications

Parameters and characteristics for this part

Specification	19398100546

Connector Type	Hood
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	106 mm
Size / Dimension [x]	4.173 "
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	95 mm
Size / Dimension [z]	3.74 in
Style	Side Entry
Thread Size	M25

Part	Ingress Protection	Housing Material	Housing Finish	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size	Lock Location	Style	Thread Size
HARTING Technology Group 19398100448	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Aluminum Die Cast	EMC Coating	2.244 "	57 mm	94 mm	4.173 "	3.701 in	106 mm	Hood	125 °C	-40 °C	10B	Screw Locks on Hood	Top Entry
HARTING Technology Group 19398100447	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Aluminum Die Cast	EMC Coating	2.244 "	57 mm	94 mm	4.173 "	3.701 in	106 mm	Hood	125 °C	-40 °C	10B	Screw Locks on Hood	Top Entry	M32
HARTING Technology Group 19398100546	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Aluminum Die Cast	EMC Coating	2.244 "	57 mm	95 mm	4.173 "	3.74 in	106 mm	Hood	125 °C	-40 °C	10B	Screw Locks on Hood	Side Entry	M25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 10B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
