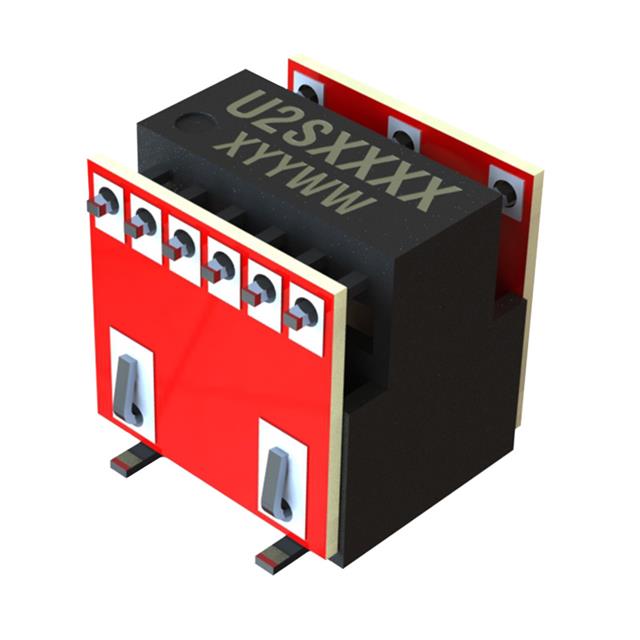

MTU2S1205MC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 5V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTU2S1205MC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 5V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTU2S1205MC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 80 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 8.4 mm |
| Size / Dimension [x] | 0.33 in |
| Size / Dimension [y] | 8.2 mm |
| Size / Dimension [y] | 0.32 in |
| Size / Dimension [z] | 0.34 in |
| Size / Dimension [z] | 8.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MTU2S12 Series
Isolated Module DC DC Converter 1 Output 5V 400mA 10.8V - 13.2V Input
