PR20C04VBNN

Active

METZ CONNECT USA Inc.

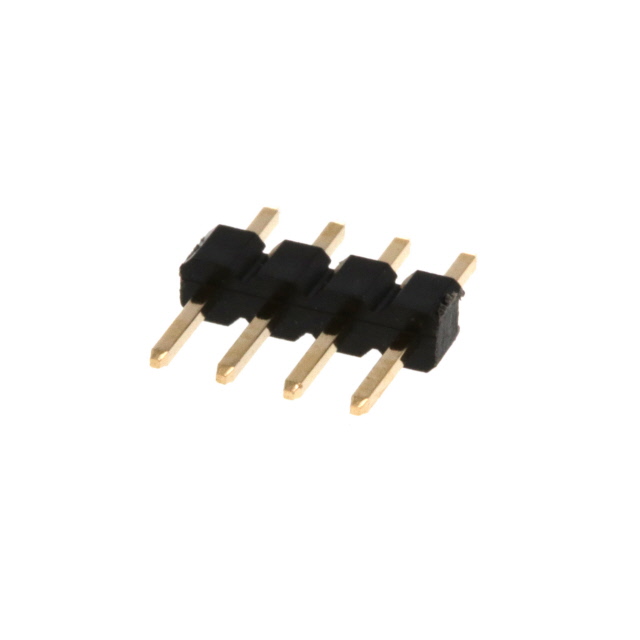

PIN HEADER, THR, SINGLE ROW, 2.0

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, THR, SINGLE ROW, 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	PR20C04VBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.154 in
Contact Length - Mating	3.91 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyethylene
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.7 mm
Overall Contact Length	0.343 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Shrouding	Termination	Insulation Height	Insulation Height	Insulation Material	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Type	Insulation Color	Connector Type	Number of Positions Loaded	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Number of Rows	Contact Length - Post [x]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating
METZ CONNECT USA Inc. PR20C04VBNN	Unshrouded	Solder	0.079 in	2 mm	Polyethylene	Gold	0.154 in	3.91 mm	105 ░C	-55 °C	Flash	Push-Pull	4	8.7 mm	0.343 in	Square	Male Pin	Black	Header	All	Through Hole	0.079 in	2 mm	Copper Zinc	1	0.11 in	2.79 mm
METZ CONNECT USA Inc. PR20C04VBDN	Unshrouded	Solder	0.079 in	2 mm	Polyethylene	Gold	0.154 in	3.91 mm	105 ░C	-40 °C	Flash	Push-Pull	8	8.7 mm	0.343 in	Square	Male Pin	Black	Header	All	Through Hole	0.079 in	2 mm	Copper Alloy	2	0.11 in	2.79 mm	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.079" (2.00mm)
