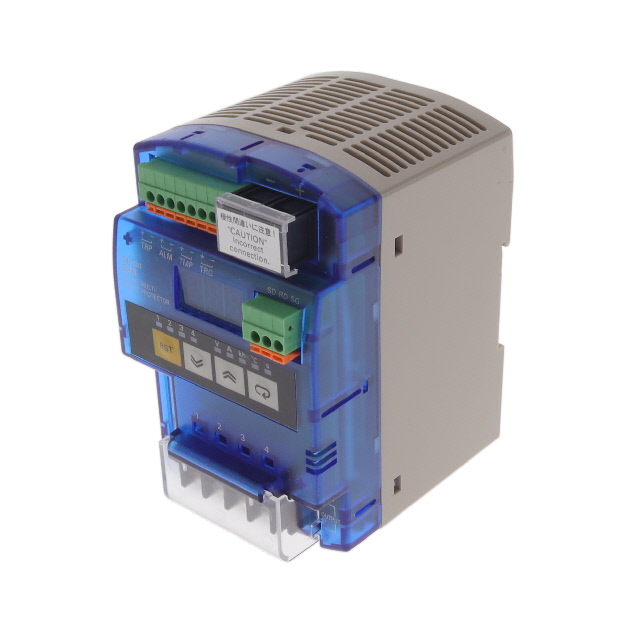

S8M-CP04-R

Active

Omron Electronics Inc-EMC Div

PWR MULTICIRCUIT PROTECT RS-232

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

PWR MULTICIRCUIT PROTECT RS-232

Technical Specifications

Parameters and characteristics for this part

Specification	S8M-CP04-R

Function	Overtemperature, Undervoltage, Overcurrent, Overvoltage
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Termination Style	Screw Terminal
Trip Range [Max]	4 A, 28.8 VDC
Trip Range [Min]	0.5 mA, 18 VDC
Voltage - Supply	24 VDC

Part	Function	Trip Range [Min]	Trip Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Mounting Type	Termination Style
Omron Electronics Inc-EMC Div S8M-CP04-R	Overcurrent Overtemperature Overvoltage Undervoltage	0.5 mA 18 VDC	4 A 28.8 VDC	-10 °C	60 °C	24 VDC	DIN Rail	Screw Terminal
Omron Electronics Inc-EMC Div S8M-CP04	Overcurrent Overtemperature Overvoltage Undervoltage	0.5 mA 18 VDC	4 A 28.8 VDC	-10 °C	60 °C	24 VDC	DIN Rail	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 381.78

General part information

PWR MULTICIRCUIT PROTECT RS-232

Technical documentation and resources
