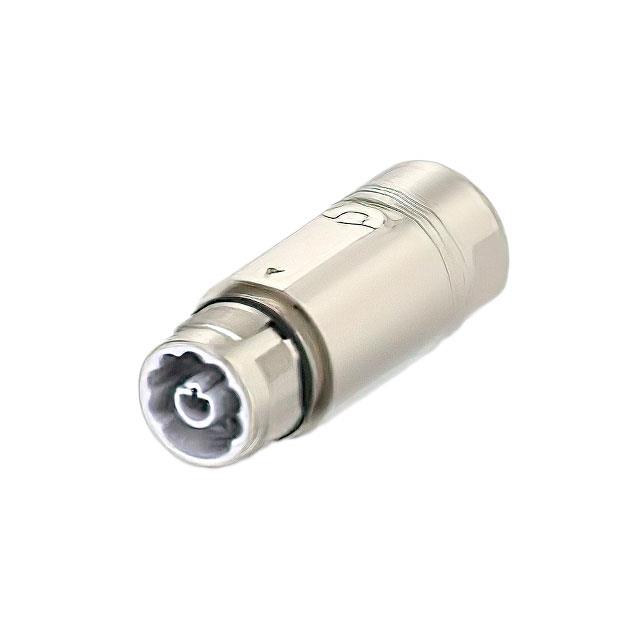

AKA002N00480550000

Active

TE Intercontec

CONN RCPT HSG MALE 10POS INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 10POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	AKA002N00480550000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-10
Shielding	Shielded
Type	For Male Pins

Part	Mounting Type	Contact Shape	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shielding	Features	Number of Positions	Orientation	Type	Shell Finish	Insert Material	Shell Size - Insert	Housing Color	Connector Type	Note	Ingress Protection	Includes	Material Flammability Rating
TE Intercontec AKA002N00480550000	Free Hanging (In-Line)	Circular	Zinc Die Cast	-20 C	130 °C	Push-Twist	Shielded	Backshell Cable Clamp	10	Keyed	For Male Pins	Nickel	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	M23-10	Silver	Receptacle Housing	Contacts Not Included	IP66/IP67	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp
