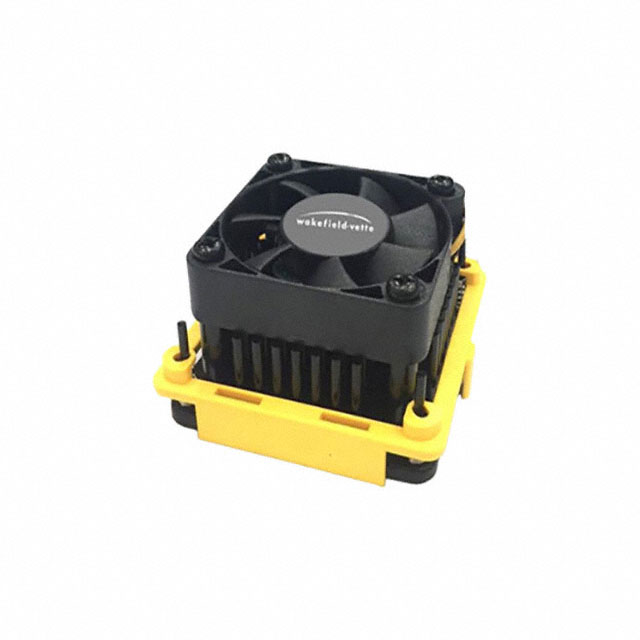

HSF-48-35-B-F

Active

Wakefield-Vette

FANSINK 5VDC 47.5X47.5X34.5MM

Search across all available documentation for this part.

Active

Wakefield-Vette

FANSINK 5VDC 47.5X47.5X34.5MM

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Material Finish	Package Cooled	Material	Type	Attachment Method	Width [x]	Width [x]	Fin Height	Fin Height	Shape	Thermal Resistance @ Natural	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]
Wakefield-Vette HSF-48-35-B-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm	29.5 mm	1.161 in	Fins Square	0.77 °C/W
Wakefield-Vette HSF-48-40-Y-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm	39.5 mm	1.555 in	Fins Square	0.72 °C/W
Wakefield-Vette HSF-48-40-B-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm			Fins Square	0.72 °C/W
Wakefield-Vette HSF-48-19-Y-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm			Fins Square	1.41 °C/W	18.5 mm	0.728 in
Wakefield-Vette HSF-48-22-B-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm	21.5 mm	0.846 in	Fins Square	1.14 °C/W
Wakefield-Vette HSF-48-22-Y-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm	35.1 mm	1.382 in	Fins Square	1.14 °C/W
Wakefield-Vette HSF-48-30-Y-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm	29.5 mm	1.161 in	Fins Square	0.83 °C/W
Wakefield-Vette HSF-48-25-Y-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm			Fins Square	0.98 °C/W			24.5 mm	0.965 in
Wakefield-Vette HSF-48-28-Y-F	1.87 in	47.5 mm	Black Anodized	BGA	Aluminum Alloy	Top Mount	Clip	1.87 in	47.5 mm			Fins Square	0.88 °C/W			27.5 mm	1.083 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.82

General part information

Heat Sink BGA Aluminum Alloy Top Mount
