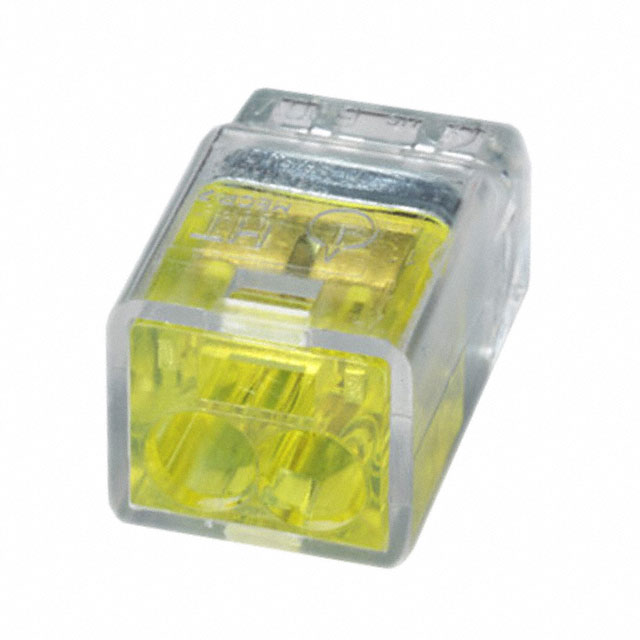

148-90024
ObsoleteHELLERMANNTYTON
CONN INLINE TAP 12-2 AWG
Deep-Dive with AI
Search across all available documentation for this part.
148-90024
ObsoleteHELLERMANNTYTON
CONN INLINE TAP 12-2 AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 148-90024 |
|---|---|
| Color | Transparent - Yellow |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Individual Openings, Closed End, Butt Splice |
| Termination | Push In |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
148-90 Series
| Part | Number of Wire Entries | Color | Termination | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type |
|---|---|---|---|---|---|---|---|
HELLERMANNTYTON | 3 | Transparent - Orange | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 5 | Transparent - Blue | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 6 | Transparent - Purple | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 2 | Transparent - Yellow | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 2 | Transparent - Yellow | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 6 | Transparent - Purple | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 4 | Transparent - Clear | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 3 | Transparent - Orange | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 2 | Transparent - Yellow | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
HELLERMANNTYTON | 4 | Transparent - Clear | Push In | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Individual Openings |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
148-90 Series
Terminal Butt Splice, Closed End, Individual Openings Connector Push In 12-22 AWG Transparent - Yellow
Documents
Technical documentation and resources
No documents available
