1241.2434.7

Active

SCHURTER Inc.

PSE 16ASWF-00000000-IV-F

Search across all available documentation for this part.

Active

SCHURTER Inc.

PSE 16ASWF-00000000-IV-F

Technical Specifications

Parameters and characteristics for this part

Specification	1241.2434.7

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Electrical Life	20000000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Piezo
Voltage Rating - AC	32 V
Voltage Rating - DC	48 V

Part	Mounting Type	Ingress Protection	Voltage Rating - DC	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Marking	Termination Style	Voltage Rating - AC	Actuator Type	Switch Function	Circuit	Type
SCHURTER Inc. 1241.2434.7	Panel Mount Front	IP67 - Dust Tight Waterproof	48 V	Black	16.2 mm	-20 C	60 °C	20000000 Cycles	No Marking	Quick Connect - 0.250" (6.3mm)	32 V	Button Flush Round	Off-Mom	SPST-NO	Piezo
SCHURTER Inc. 1241.2434.1	Panel Mount Front	IP67 - Dust Tight Waterproof	48 V	Gold	16.2 mm	-20 C	60 °C	20000000 Cycles	No Marking	Quick Connect - 0.250" (6.3mm)	32 V	Button Flush Round	Off-Mom	SPST-NO	Piezo

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.71

General part information

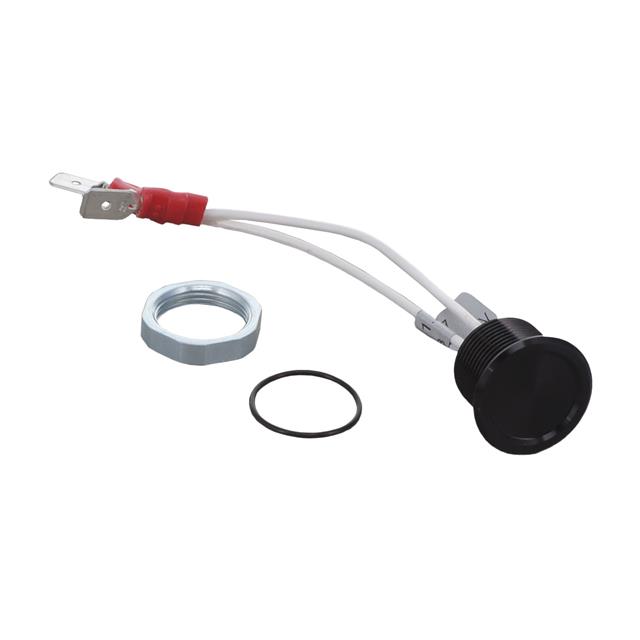

Pushbutton Switch SPST-NO Piezo Panel Mount, Front
