TDA8547TS/N1,118

Obsolete

Freescale Semiconductor - NXP

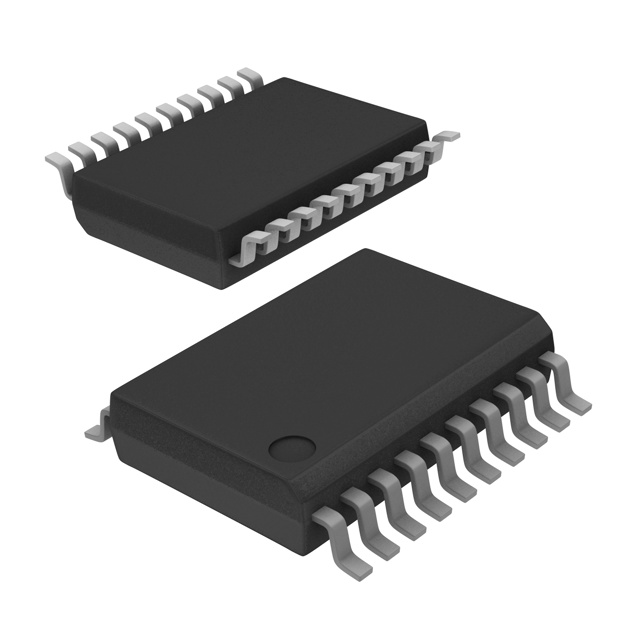

IC AMP CLASS AB STER 1.2W 20SSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TDA8547TS

TDA8547TS/N1,118

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS AB STER 1.2W 20SSOP

Deep-Dive with AI

DocumentsDatasheet TDA8547TS

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDA8547TS/N1,118

Features	Mute, Short-Circuit and Thermal Protection, Depop, Standby
Max Output Power x Channels @ Load	1.2 W, 8 Ohm, 2 channels
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)
Package / Case	20-LSSOP
Package / Case [x]	0.173 in, 4.4 mm
Supplier Device Package	20-SSOP
Type	Class AB
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	2.2 V

TDA854 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Features	Supplier Device Package	Type	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Max Output Power x Channels @ Load [custom]	Package / Case [y]	Max Output Power x Channels @ Load
Freescale Semiconductor - NXP TDA8541T/N1,118	18 V	2.2 V	1.2 W	1	Depop Mute Short-Circuit and Thermal Protection Standby	8-SO	Class AB	Surface Mount	8-SOIC	3.9 mm	0.154 in	85 °C	-40 °C	1-Channel (Mono)
Freescale Semiconductor - NXP TDA8547TS/N1,118	18 V	2.2 V	1.2 W 2 channels 8 Ohm		Depop Mute Short-Circuit and Thermal Protection Standby	20-SSOP	Class AB	Surface Mount	20-LSSOP		0.173 in 4.4 mm	85 °C	-40 °C	2-Channel (Stereo)
Freescale Semiconductor - NXP TDA8547TS/N1/02,11	18 V	2.2 V	1.2 W 2 channels 8 Ohm		Mute Short-Circuit and Thermal Protection Standby	20-SSOP	Class AB	Surface Mount	20-LSSOP		0.173 in 4.4 mm	85 °C	-40 °C	2-Channel (Stereo)
Freescale Semiconductor - NXP TDA8542AT/N1,112	18 V	2.2 V	1.5 W		Depop Mute Short-Circuit and Thermal Protection Standby	20-SO	Class AB	Surface Mount	20-SOIC	0.295 in		85 °C	-40 °C	2-Channel (Stereo)	2	7.5 mm
Freescale Semiconductor - NXP TDA8541T/N1,112	18 V	2.2 V	1.2 W	1	Depop Mute Short-Circuit and Thermal Protection Standby	8-SO	Class AB	Surface Mount	8-SOIC	3.9 mm	0.154 in	85 °C	-40 °C	1-Channel (Mono)
Freescale Semiconductor - NXP TDA8543T/N1,518	18 V	2.2 V		1	Depop Mute Short-Circuit and Thermal Protection Standby	16-SO	Class AB	Surface Mount	16-SOIC	3.9 mm	0.154 in	85 °C	-40 °C	1-Channel (Mono)			2.2 W
Freescale Semiconductor - NXP TDA8547TS/N1,112	18 V	2.2 V	1.2 W 2 channels 8 Ohm		Depop Mute Short-Circuit and Thermal Protection Standby	20-SSOP	Class AB	Surface Mount	20-LSSOP		0.173 in 4.4 mm	85 °C	-40 °C	2-Channel (Stereo)
