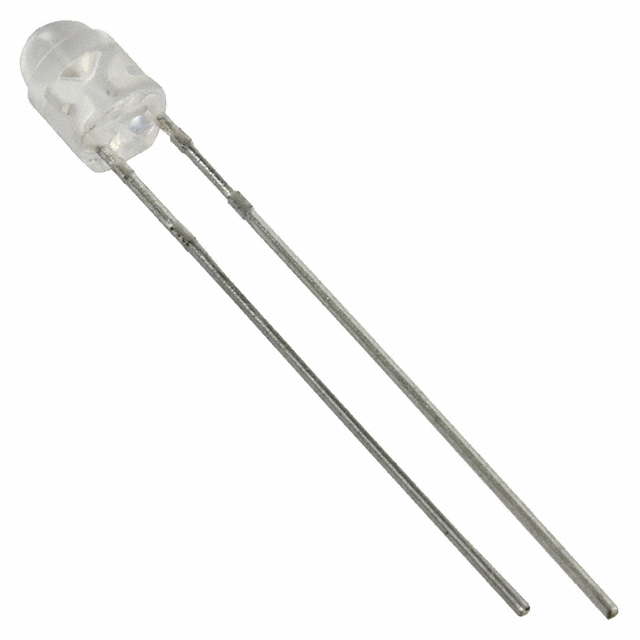

SLR343BCT3F

Obsolete

Rohm Semiconductor

LED BLUE CLEAR T-1 T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSLR343,B,E,CT Series Reliability Test LED Flammability

SLR343BCT3F

Obsolete

Rohm Semiconductor

LED BLUE CLEAR T-1 T/H

Deep-Dive with AI

DocumentsSLR343,B,E,CT Series Reliability Test LED Flammability

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SLR343BCT3F

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	5.6 mm
Lens Color	Colorless
Lens Size [diameter]	3.1 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	600 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	T-1
Viewing Angle [custom]	40 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	470 nm

SLR343WBN2PT Series

Circular LED lamp

Part	Lens Style	Supplier Device Package	Lens Color	Configuration	Mounting Type	Height (Max) [Max] [z]	Millicandela Rating	Current - Test	Package / Case	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Size [diameter]	Viewing Angle [custom]	Color	Wavelength - Dominant	Wavelength - Peak
Rohm Semiconductor SLR343WBC7T31	Round with Domed Top	T-1	Colorless	Standard	Through Hole	5.6 mm	680 mcd	20 mA	Radial	3.2 V	Clear	3.1 mm	40 °	White
Rohm Semiconductor SLR343EC4TT32	Round with Domed Top	T-1	Colorless	Standard	Through Hole	5.6 mm	1500 mcd	20 mA	Radial	3.2 V	Clear	3.1 mm	40 °	Blue-Green	525 nm
Rohm Semiconductor SLR343WBN2PT	Round with Domed Top	T-1			Through Hole	5.6 mm	3300 mcd	20 mA	Radial	3.2 V		3.1 mm	40 °	White
Rohm Semiconductor SLR343EBT3F	Round with Domed Top	T-1	Colorless	Standard	Through Hole	5.7 mm	1500 mcd	20 mA	Radial	3.5 V	Clear	3.1 mm		Green		523 nm
Rohm Semiconductor SLR343WBD2PT31XR	Round with Domed Top	T-1			Through Hole	5.6 mm	3300 mcd	20 mA	Radial	3.2 V		3.1 mm	40 °	White
Rohm Semiconductor SLR343BC7TT32	Round with Domed Top	T-1	Colorless	Standard	Through Hole	5.6 mm	470 mcd	20 mA	Radial	3.2 V	Clear	3.1 mm	40 °	Blue	470 nm
Rohm Semiconductor SLR343BCT3F	Round with Domed Top	T-1	Colorless	Standard	Through Hole	5.6 mm	600 mcd	20 mA	Radial	3.3 V	Clear	3.1 mm	40 °	Blue	470 nm
Rohm Semiconductor SLR343BC4T3F	Round with Domed Top	T-1	Colorless	Standard	Through Hole	5.6 mm	470 mcd	20 mA	Radial	3.2 V	Clear	3.1 mm	40 °	Blue	470 nm
Rohm Semiconductor SLR343EC4T3F	Round with Domed Top	T-1	Colorless	Standard	Through Hole	5.6 mm	1500 mcd	20 mA	Radial	3.2 V	Clear	3.1 mm	40 °	Blue-Green	525 nm
Rohm Semiconductor SLR343WBC7T3	Round with Domed Top	T-1	Colorless	Standard	Through Hole	5.6 mm	680 mcd	20 mA	Radial	3.2 V	Clear	3.1 mm	40 °	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SLR343WBN2PT Series

ROHM's lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.
