101TL2-7

Active

Honeywell Sensing and Productivity Solutions

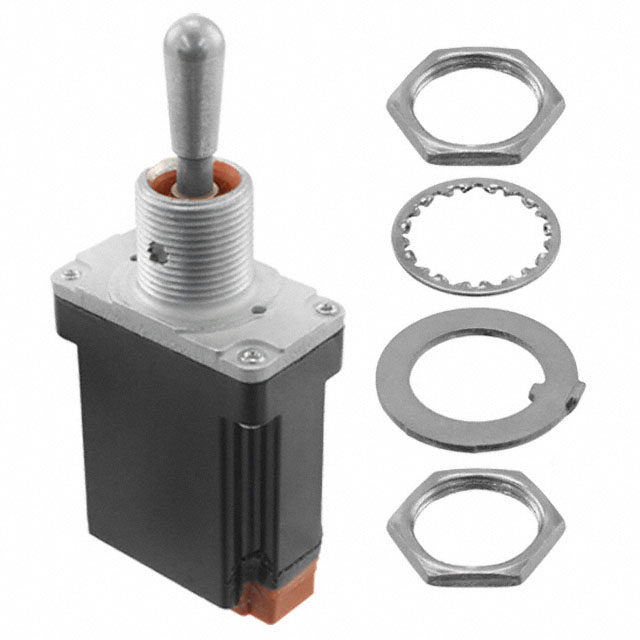

SWITCH TOGGLE SPDT 7.5A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsToggle Switch Line Guide Datasheet

101TL2-7

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 7.5A 115V

Deep-Dive with AI

DocumentsToggle Switch Line Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	101TL2-7

Actuator Length [x]	17.27 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	7.5 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	Mom-Off-Mom
Termination Style	IWTS
Voltage Rating - AC	115 V
Voltage Rating - DC	30 V

101TL2 Series

Part	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Actuator Material	Bushing Thread	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Circuit	Illumination	Actuator Length [x]	Ingress Protection	Panel Cutout Dimensions [diameter]
Honeywell Sensing and Productivity Solutions 101TL2-8	115 V	7.5 A	On-Mom	Nickel Plated	15/32-32	Standard Round	IWTS	71 °C	-65 ░C	30 V	SPDT	Non-Illuminated	17.27 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2834-3	115 V	100 mA	On-On	Nickel Plated	15/32-32	Standard Round	IWTS	71 °C	-65 ░C	28 V	SPDT	Non-Illuminated	17.27 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2-7	115 V	7.5 A	Mom-Off-Mom	Nickel Plated	15/32-32	Standard Round	IWTS	71 °C	-65 ░C	30 V	SPDT	Non-Illuminated	17.27 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2-2D	115 V	7.5 A	On-Off	Nickel Plated	15/32-32	Locking Lever	IWTS	71 °C	-65 ░C	30 V	SPST	Non-Illuminated	26.67 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2-31	115 V	7.5 A	On-On	Nickel Plated	15/32-32	Standard Round	IWTS	71 °C	-65 ░C	30 V	SPDT	Non-Illuminated	17.27 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2-5N	115 V	7.5 A	On-Off-Mom		15/32-32	Locking Lever	IWTS	71 °C	-65 ░C	30 V	SPDT	Non-Illuminated	26.67 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2841-7	115 V	100 mA	Mom-Off-Mom	Nickel Plated	15/32-32	Flatted	IWTS	71 °C	-65 ░C	28 V	SPDT	Non-Illuminated	16.51 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2-4	115 V	7.5 A	On-Mom	Nickel Plated	15/32-32	Standard Round	IWTS	71 °C	-65 ░C	30 V	SPST-NC	Non-Illuminated	17.27 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2-6F	115 V	7.5 A	Off-Mom	Nickel Plated	15/32-32	Locking Lever	IWTS	71 °C	-65 ░C	30 V	SPST-NO	Non-Illuminated	26.67 mm	Environment Sealed	12.4 mm
Honeywell Sensing and Productivity Solutions 101TL2-3G	115 V	7.5 A	On-On	Nickel Plated	15/32-32	Locking Lever	IWTS	71 °C	-65 ░C	30 V	SPDT	Non-Illuminated	26.67 mm	Environment Sealed	12.4 mm
