ANT9520LL06R2400A
ActivePulse Electronics

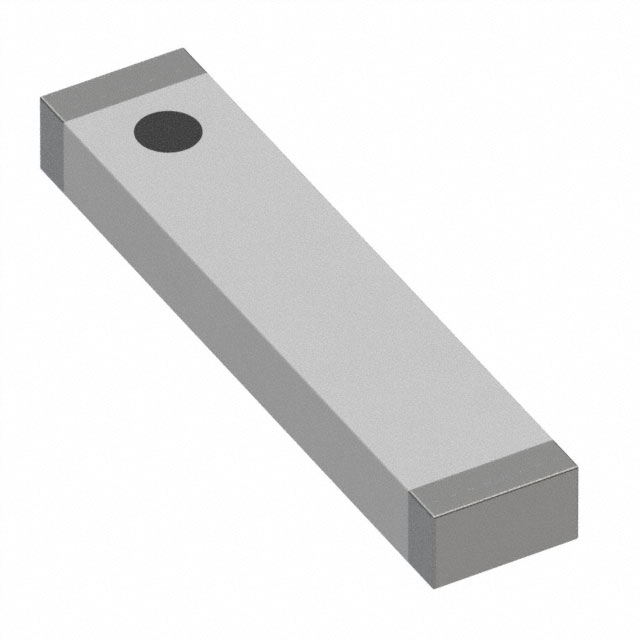

RF ANT 2.45GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT9520LL06R2400A
ActivePulse Electronics
RF ANT 2.45GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT9520LL06R2400A |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi, Bluetooth, ISM, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2.85 dBi |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 1 W |
| Return Loss | 7.36 dB |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| Digi-Reel® | 1 | $ 0.72 | ||
| Tape & Reel (TR) | 2000 | $ 0.28 | ||
| 6000 | $ 0.26 | |||
| 10000 | $ 0.25 | |||
Description
General part information
ANT9520 Series
RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ Chip Solder Surface Mount
