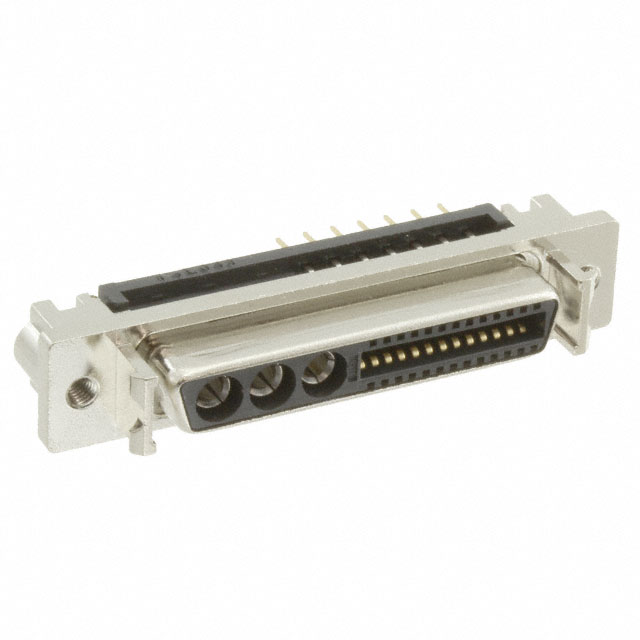

DX20J-26S-CR3(50)
LTBHirose Electric USA, Inc.
CONN RECEPT 26POS STRT
Deep-Dive with AI
Search across all available documentation for this part.
DX20J-26S-CR3(50)
LTBHirose Electric USA, Inc.
CONN RECEPT 26POS STRT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DX20J-26S-CR3(50) |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Flange Feature | Latchblocks, Housing/Shell |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Miniature High Density (HD) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 32.89 | |
| 10 | $ 28.80 | |||
| 30 | $ 27.55 | |||
Description
General part information
DX20J Series
26 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder
Documents
Technical documentation and resources
No documents available
