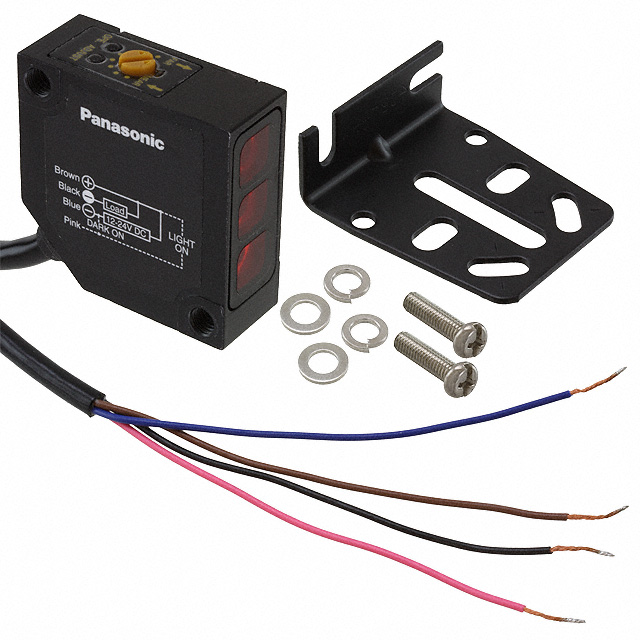

MQ-W20AR-DC12-24V
ObsoletePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 200MM NPN OPEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MQ-W20AR-DC12-24V
ObsoletePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 200MM NPN OPEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MQ-W20AR-DC12-24V |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | NPN - Open Collector |
| Response Time | 2 ms |
| Sensing Distance | 200 mm |
| Sensing Distance | 7.874 " |
| Sensing Method | Reflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 9.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MQ-W20 Series
Reflective Optical Sensor 7.874" (200mm) NPN - Open Collector
