LCM-S02004DSR/D-YE

Active

Lumex Opto/Components Inc.

LCD MOD 80 DIG 20 X 4 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 80 DIG 20 X 4 REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Backlight	Display Mode	Character Format [y]	Character Format [x]	Number of Characters	Display Format [y]	Display Format [x]	Viewing Area [y]	Viewing Area [x]	Background Color	Dot Size [x]	Dot Size [y]	Display Type	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [z]	Character Size [y]
Lumex Opto/Components Inc. LCM-S02004DSR	Parallel	Without Backlight	Reflective	8 Dots	5 Dots	80	4	20	26.3 mm	77 mm	Green	0.55 mm	0.55 mm	STN - Super-Twisted Nematic	98 mm	60 mm	8.8 mm
Lumex Opto/Components Inc. LCM-S02004DSR/D-YE		Without Backlight	Reflective	8 Dots	5 Dots	80	4	20	43 mm	123.5 mm		0.92 mm	1.1 mm	STN - Super-Twisted Nematic	146 mm	62.5 mm	11 mm	-20 C	70 °C	4.75 V	5.25 V	9.22 mm	4.84 mm
Lumex Opto/Components Inc. LCM-S02004DTF	Parallel		Transflective	8 Dots	5 Dots	80	4	20	26.3 mm	77 mm		0.55 mm	0.55 mm	TN - Twisted Nematic	98 mm	60 mm	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

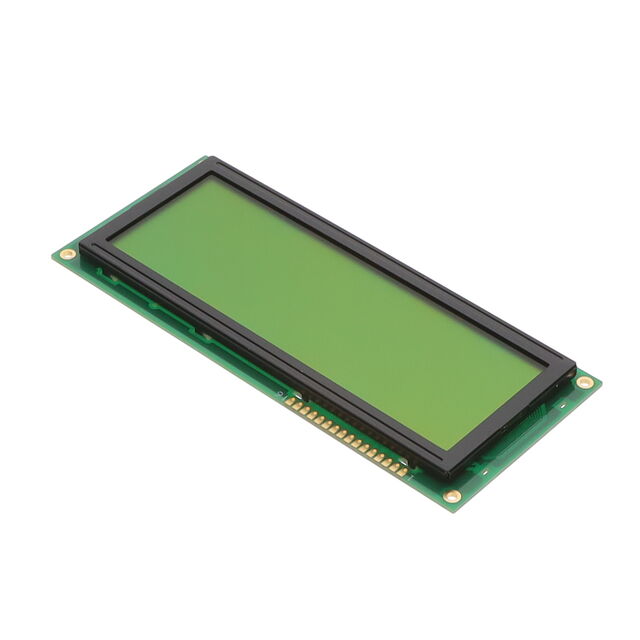

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight 146.00mm x 62.50mm x 11.00mm
