09400249922

Active

HARTING Technology Group

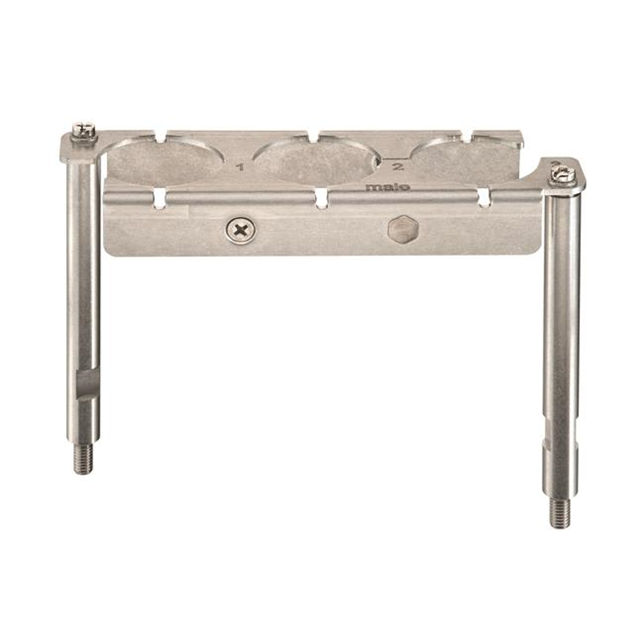

24 HPR EASYCON FRAME FOR 3X650AMP FEMALE CONTACTS

Search across all available documentation for this part.

Active

HARTING Technology Group

24 HPR EASYCON FRAME FOR 3X650AMP FEMALE CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	09400249922

Frame Type	Fixed Frame
Gender	Female
Includes	4 Tubes, 2 Pins, 4 Washers, 4 Screws, 1 Frame
Material	Metal
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24HPR

Part	Frame Type	Includes	Material	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Size	Number of Modules
HARTING Technology Group 09400249922	Fixed Frame	1 Frame 2 Pins 4 Screws 4 Tubes 4 Washers	Metal	125 °C	-40 °C	Female	24HPR
HARTING Technology Group 09400249931	Fixed Frame		Metal	125 °C	-40 °C	Female	24HPR	8
HARTING Technology Group 09400249911	Fixed Frame	1 Frame 2 Pins 4 Screws 4 Washers	Metal	125 °C	-40 °C	Male	24HPR
HARTING Technology Group 09400249903	Fixed Frame		Metal	125 °C	-40 °C	Male	24HPR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Module Female Heavy Duty Fixed Frame Size 24HPR
