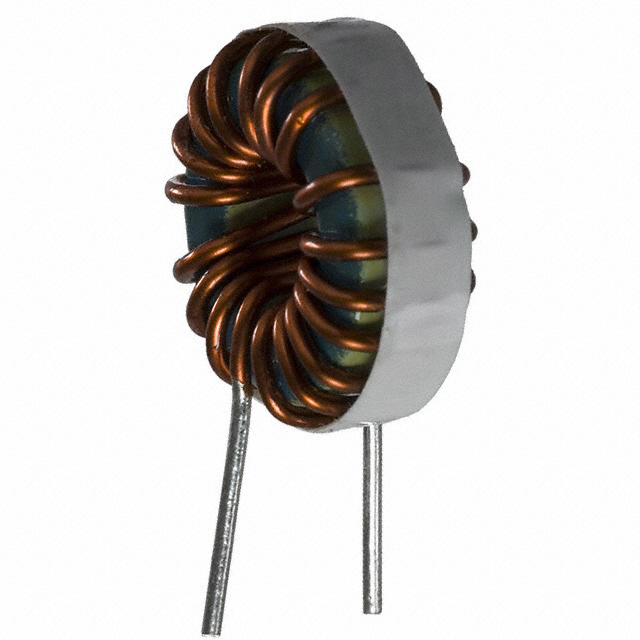

2100HT-100-V-RC

Active

Bourns Inc.

FIXED IND 10UH 9.9A 12 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2100HT-100-V-RC

Active

Bourns Inc.

FIXED IND 10UH 9.9A 12 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2100HT-100-V-RC

Current Rating (Amps)	9.9 A
DC Resistance (DCR)	12 mOhm
Inductance	10 µH
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Vertical (Open)
Shielding	Shielded
Size / Dimension [diameter]	21.84 mm
Size / Dimension [diameter]	0.86 "
Size / Dimension [y]	0.45 in
Size / Dimension [y]	11.43 mm
Tolerance	15 %
Type	Toroidal

2100HT Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current Rating (Amps)	Package / Case	Inductance	DC Resistance (DCR) [Max]	Mounting Type	Type	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR)
Bourns Inc. 2100HT-1R0-H-RC	11.43 mm	0.45 in	-55 °C	200 °C	Shielded	21.7 A	Radial Horizontal (Open)	1 µH	3 mOhm	Through Hole	Toroidal	15 %	21.84 mm	0.86 "
Bourns Inc. 2100HT-101-V-RC			-55 °C	200 °C	Shielded	4.6 A	Radial Vertical (Open)	100 µH	53 mOhm	Through Hole	Toroidal	15 %	21.84 mm	0.86 "	0.45 in	11.43 mm
Bourns Inc. 2100HT-101-H-RC	11.43 mm	0.45 in	-55 °C	200 °C	Shielded	4.6 A	Radial Horizontal (Open)	100 µH	53 mOhm	Through Hole	Toroidal	15 %	21.84 mm	0.86 "
Bourns Inc. 2100HT-5R6-V-RC			-55 °C	200 °C	Shielded	14.3 A	Radial Vertical (Open)	5.6 µH	6 mOhm	Through Hole	Toroidal	15 %	21.84 mm	0.86 "	0.45 in	11.43 mm
Bourns Inc. 2100HT-6R8-H-RC	11.43 mm	0.45 in	-55 °C	200 °C	Shielded	13.7 A	Radial Horizontal (Open)	6.8 µH	6 mOhm	Through Hole	Toroidal	15 %	21.84 mm	0.86 "
Bourns Inc. 2100HT-561-H-RC	11.43 mm	0.45 in	-55 °C	200 °C	Shielded	1.9 A	Radial Horizontal (Open)	560 µH		Through Hole	Toroidal	15 %	21.84 mm	0.86 "
Bourns Inc. 2100HT-271-V-RC			-55 °C	200 °C	Shielded	2.8 A	Radial Vertical (Open)	270 µH		Through Hole	Toroidal	15 %	21.84 mm	0.86 "	0.45 in	11.43 mm	140 mOhm
Bourns Inc. 2100HT-100-V-RC			-55 °C	200 °C	Shielded	9.9 A	Radial Vertical (Open)	10 µH		Through Hole	Toroidal	15 %	21.84 mm	0.86 "	0.45 in	11.43 mm	12 mOhm
Bourns Inc. 2100HT-680-V-RC			-55 °C	200 °C	Shielded	5.1 A	Radial Vertical (Open)	68 µH		Through Hole	Toroidal	15 %	21.84 mm	0.86 "	0.45 in	11.43 mm	44 mOhm
Bourns Inc. 2100HT-101-H	11.43 mm	0.45 in	-55 °C	200 °C	Shielded	4.6 A	Radial Horizontal (Open)	100 µH	53 mOhm	Through Hole	Toroidal	15 %	21.84 mm	0.86 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.85
		10	$ 2.38
		25	$ 2.17
		50	$ 1.86
		154	$ 1.82

Description

General part information

2100HT Series

10 µH Shielded Toroidal Inductor 9.9 A 12mOhm Max Radial, Vertical (Open)
