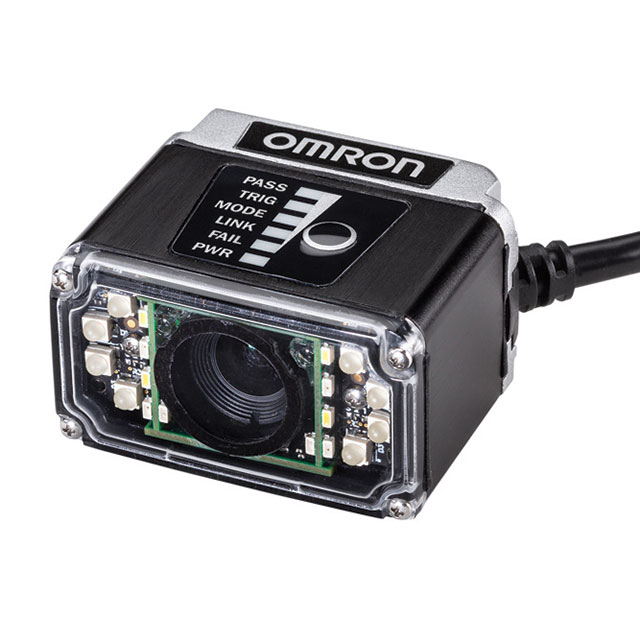

V430-F000L12M-SRX
ActiveOmron Electronics Inc-EMC Div
V430,000L,12M,STD-RED,XMODE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V430-F000L12M-SRX
ActiveOmron Electronics Inc-EMC Div
V430,000L,12M,STD-RED,XMODE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V430-F000L12M-SRX |
|---|---|
| Image Type | Monochrome |
| Ingress Protection | IP67, IP65 |
| Light Source | Integrated (Red) |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | 0 °C |
| Resolution | 1228800 Pixels, 1.2 MP |
| Resolution [x] | 1280 |
| Resolution [y] | 960 |
| Sensor Type | CMOS |
| Type | Multi Code Reader |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 5 V |
V430-F000 Series
| Part | Resolution [y] | Resolution [x] | Resolution | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Image Type | Ingress Protection | Light Source | Sensor Type | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 960 | 1280 | 1.2 MP 1228800 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (White) | CMOS | Multi Code Reader | Chassis Mount |
Omron Electronics Inc-EMC Div | 960 | 1280 | 1.2 MP 1228800 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (Red) | CMOS | Multi Code Reader | Chassis Mount |
Omron Electronics Inc-EMC Div | 960 | 1280 | 1.2 MP 1228800 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (Red) | CMOS | Multi Code Reader | Chassis Mount |
Omron Electronics Inc-EMC Div | 960 | 1280 | 1.2 MP 1228800 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (Red) | CMOS | Multi Code Reader | Chassis Mount |
Omron Electronics Inc-EMC Div | 480 | 752 | 0.4 MP 360960 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (Red) | CMOS | Multi Code Reader | Chassis Mount |
Omron Electronics Inc-EMC Div | 480 | 752 | 0.4 MP 360960 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (Red) | CMOS | Multi Code Reader | Chassis Mount |
Omron Electronics Inc-EMC Div | 960 | 1280 | 1.2 MP 1228800 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (White) | CMOS | Multi Code Reader | Chassis Mount |
Omron Electronics Inc-EMC Div | 960 | 1280 | 1.2 MP 1228800 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (White) | CMOS | Multi Code Reader | Chassis Mount |
Omron Electronics Inc-EMC Div | 960 | 1280 | 1.2 MP 1228800 Pixels | 45 °C | 0 °C | 5 V | 30 VDC | Monochrome | IP65 IP67 | Integrated (Red) | CMOS | Multi Code Reader | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3377.25 | |
Description
General part information
V430-F000 Series
V430,000L,12M,STD-RED,XMODE
Documents
Technical documentation and resources
