EAPSV3026A0
ActiveEverlight Electronics Co Ltd

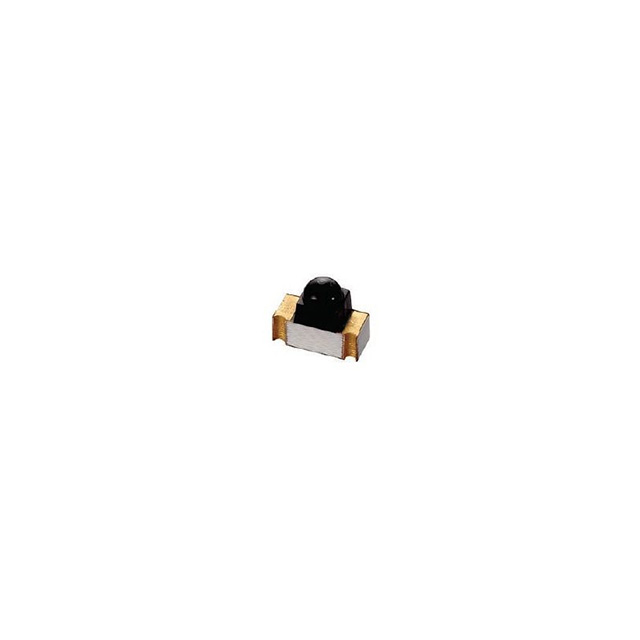

SENSOR PHOTO 940NM TOP VIEW 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAPSV3026A0
ActiveEverlight Electronics Co Ltd
SENSOR PHOTO 940NM TOP VIEW 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAPSV3026A0 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - Dark (Id) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead |
| Power - Max [Max] | 75 mW |
| Viewing Angle | 35 ° |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.25 | |||
| Tape & Reel (TR) | 1500 | $ 0.19 | ||
Description
General part information
EAPSV3026 Series
Phototransistors 940nm Top View 2-SMD, No Lead
