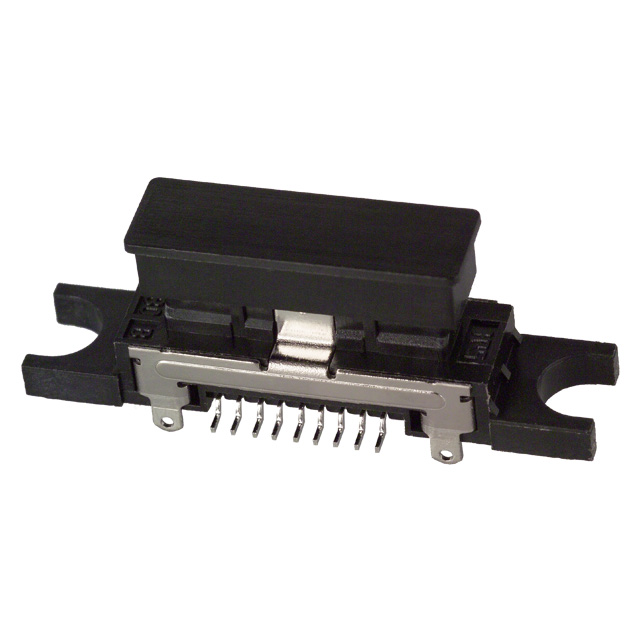

ST80X-18S(30)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 18POS 1MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 18POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	ST80X-18S(30)

Connector Type	Cradle, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Current Rating (Amps)	0.5 A
Fastening Type	Latch Holder
Features	Board Guide, Shielded, Mounting Flange
Insulation Color	Black
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Current Rating (Amps)	Contact Type	Connector Type	Number of Positions Loaded	Number of Rows	Insulation Color	Material Flammability Rating	Fastening Type	Style	Pitch - Mating	Pitch - Mating	Termination	Contact Material	Features	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Contact Finish - Mating	Voltage Rating	Insulation Height	Insulation Height
Hirose Electric USA, Inc. ST80X-18S	0.5 A	Non-Gendered	Cradle Plug	All	1	Black	UL94 V-0	Latch Holder	Board to Cable/Wire	0.039 in	1 mm	Solder	Copper Alloy	Board Guide Mounting Flange Shielded	18	30 Áin	0.76 Ám	-30 ░C	80 C	Surface Mount	Nylon Polyamide (PA)	Gold	100 V
Hirose Electric USA, Inc. ST60X-18S(30)	0.5 A	Non-Gendered	Cradle Plug	All	1	Black	UL94 V-0	Latch Holder	Board to Cable/Wire	0.02 in	0.5 mm	Solder	Copper Alloy	Board Guide Mounting Flange Shielded	18			-30 ░C	80 C	Surface Mount Right Angle	Nylon 9T Polyamide (PA9T)	Gold	100 V	2.95 mm	0.116 in
Hirose Electric USA, Inc. ST80X-18S(30)	0.5 A	Non-Gendered	Cradle Plug	All	1	Black	UL94 V-0	Latch Holder	Board to Cable/Wire	0.039 in	1 mm	Solder	Copper Alloy	Board Guide Mounting Flange Shielded	18			-30 ░C	80 C	Surface Mount	Nylon Polyamide (PA)	Gold	100 V
Hirose Electric USA, Inc. ST80X-24S(50)	0.5 A	Non-Gendered	Cradle Plug	All	1	Black	UL94 V-0	Latch Holder	Board to Cable/Wire	0.039 in	1 mm	Solder	Copper Alloy	Board Guide Mounting Flange Shielded	24	30 Áin	0.76 Ám	-30 ░C	80 C	Surface Mount	Nylon Polyamide (PA)	Gold	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 18 position 0.039" (1.00mm)
