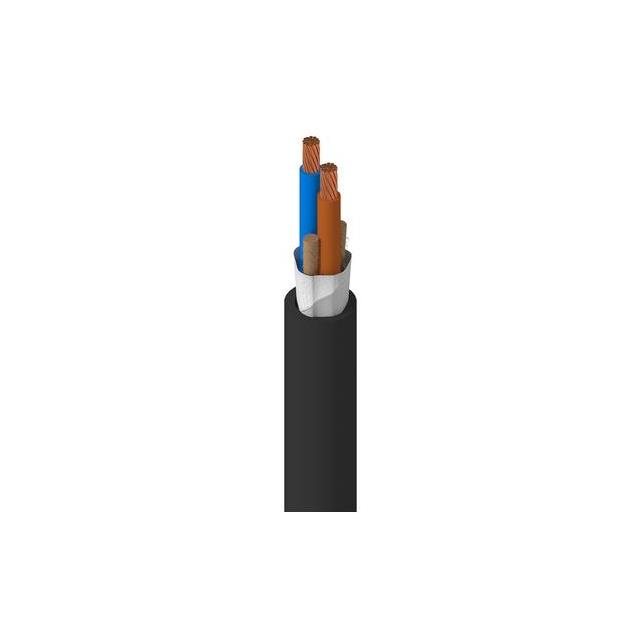

19502 B59250

Active

Belden Inc.

CABLE 2COND 14AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19502 B59250

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	13.31 mm
Jacket (Insulation) Diameter [diameter]	0.524 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	2.261 mm
Jacket (Insulation) Thickness	0.089 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Ratings	UL Style STOW
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	13.5 AWG

Part	Cable Type	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Features	Jacket Color	Jacket (Insulation) Material	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Ratings	Voltage
Belden Inc. 19502 B59250	Multi-Conductor	Cord and Cordset	2.261 mm	0.089 in	13.31 mm	0.524 in	Copper Bare	Oil Resistant	Black	Poly-Vinyl Chloride (PVC)	2	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)	3000 "	76.2 m	41	30 AWG	13.5 AWG	UL Style STOW	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 7.67

General part information

2 Conductor Multi-Conductor Cable Black 14 AWG 250.0' (76.2m)
