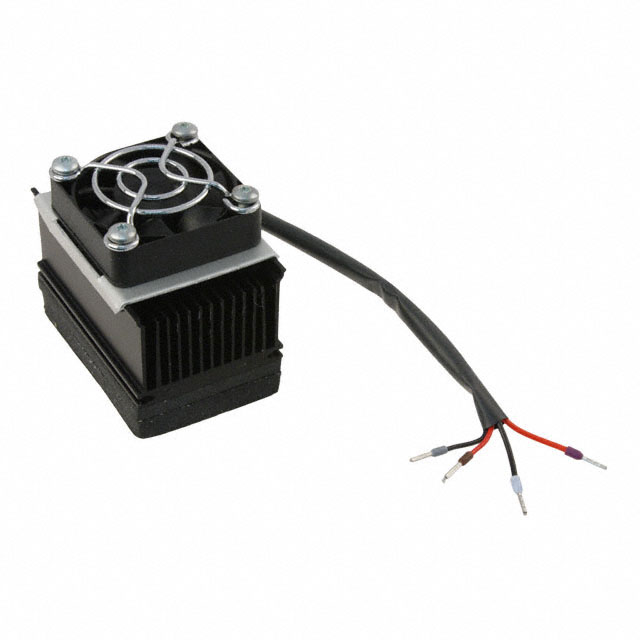

DA-014-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 12W
Deep-Dive with AI
Search across all available documentation for this part.
DA-014-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 12W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DA-014-12-02-00-00 |
|---|---|
| Current | 1.8 A |
| Dimensions - Overall [x] | 60 mm |
| Dimensions - Overall [y] | 40 mm |
| Dimensions - Overall [z] | 53 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature [Max] | 44 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 12 W |
| Power - Input | 22 W |
| Voltage | 12 V |
| Weight | 200.03 g |
| Weight | 0.441 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 202.83 | |
| 5 | $ 190.68 | |||
| 10 | $ 185.82 | |||
| 25 | $ 179.75 | |||
| 50 | $ 174.89 | |||
Description
General part information
DA-014-12 Series
Direct to Air Thermoelectric Assembly 12 W
