C1AXS-5036G
ActiveCW Industries
IDC CABLE - CSC50S/AE50G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1AXS-5036G
ActiveCW Industries
IDC CABLE - CSC50S/AE50G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1AXS-5036G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Cable |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.86 | |
| 10 | $ 9.88 | |||
| 25 | $ 8.93 | |||
| 50 | $ 8.28 | |||
| 100 | $ 7.70 | |||
| 250 | $ 7.01 | |||
| 500 | $ 6.55 | |||
| 1000 | $ 6.13 | |||
Description
General part information
C1AXS-5 Series

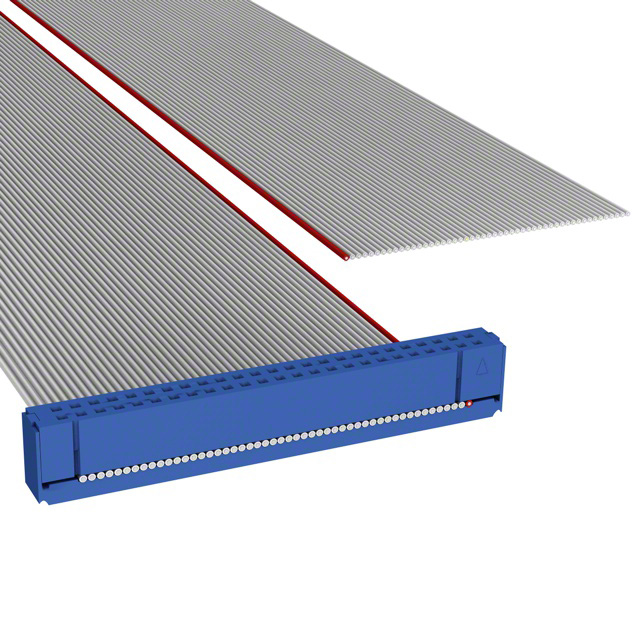

50 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
