Q-PTFE-0AWG-02-QB48IN-5

Active

Qualtek

HEATSHRINK 0AWG 48" CLEAR1=5PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 0AWG 48" CLEAR1=5PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q-PTFE-0AWG-02-QB48IN-5

Color	Clear
Features	Chemical Resistant, Flame Retardant
Inner Diameter - Recovered	8.56 mm
Inner Diameter - Recovered	0.337 in
Inner Diameter - Supplied [diameter]	11.94 mm
Inner Diameter - Supplied [diameter]	0.47 "
Length [x]	1.22 m
Length [x]	4 ft
Material	Polytetrafluoroethylene (PTFE)
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-65 ░C
Recovered Wall Thickness	0.015 in
Recovered Wall Thickness	0.38 mm
Shelf Life	144 Months
Shrink Temperature	350 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Semi Rigid

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Features	Shrink Temperature	Shelf Life	Type	Color	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
Qualtek Q-PTFE-0AWG-02-QB48IN-5	-65 ░C	260 ░C	1.22 m	4 ft	-50 °F -10 °C	40 °C	Polytetrafluoroethylene (PTFE)	Chemical Resistant Flame Retardant	350 °C	144 Months	Tubing Semi Rigid	Clear	0.015 in	0.38 mm	2 to 1	11.94 mm	0.47 "	8.56 mm	0.337 in
Qualtek Q-PTFE-14AWG-02-QB48IN-25	-65 ░C	260 ░C	1.22 m	4 ft	-50 °F -10 °C	40 °C	Polytetrafluoroethylene (PTFE)	Chemical Resistant Flame Retardant	350 °C	144 Months	Tubing Semi Rigid	Clear	0.012 in	0.3 mm	2 to 1	3.05 mm	0.12 in			0.072 in	1.83 mm
Qualtek Q-PTFE-2AWG-02-QB48IN-5	-65 ░C	260 ░C	1.22 m	4 ft	-50 °F -10 °C	40 °C	Polytetrafluoroethylene (PTFE)	Chemical Resistant Flame Retardant	350 °C	144 Months	Tubing Semi Rigid	Clear	0.015 in	0.38 mm	2 to 1	10.92 mm	0.43 in			0.272 in	6.91 mm
Qualtek Q-PTFE-8AWG-02-QB48IN-5	-65 ░C	260 ░C	1.22 m	4 ft	-50 °F -10 °C	40 °C	Polytetrafluoroethylene (PTFE)	Chemical Resistant Flame Retardant	350 °C	144 Months	Tubing Semi Rigid	Clear	0.015 in	0.38 mm	2 to 1	6.1 mm	0.24 in			0.14 in	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

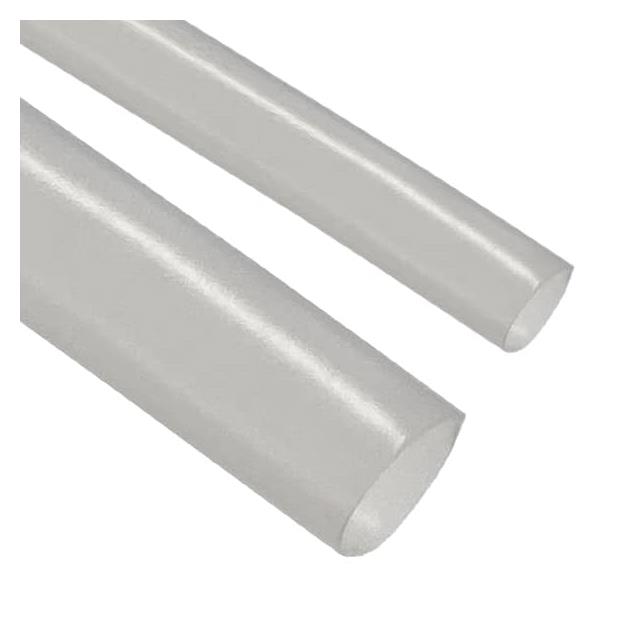

Heat Shrink Tubing, Semi Rigid 0.470" (11.94mm) 2 to 1 Clear 4.00' (1.22m)
