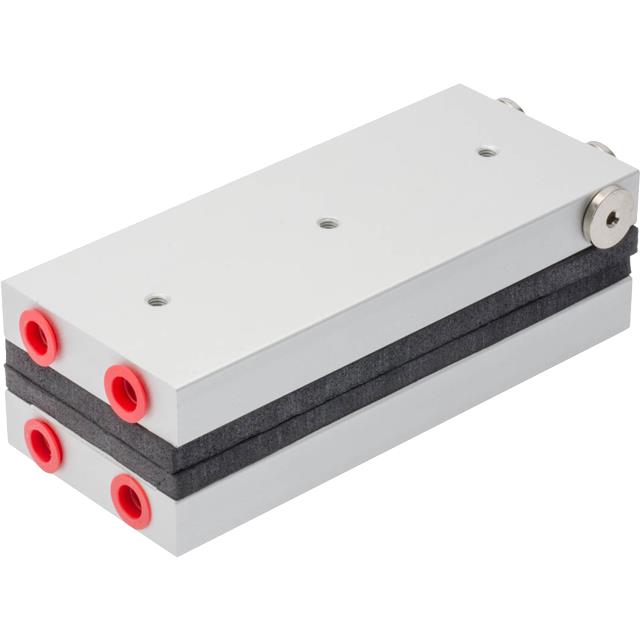

LL-120-24-00-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY LIQUID-LIQ 122W
Deep-Dive with AI
Search across all available documentation for this part.
LL-120-24-00-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY LIQUID-LIQ 122W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LL-120-24-00-00-00 |
|---|---|
| Current | 4.2 A |
| Dimensions - Overall [x] | 140 mm |
| Dimensions - Overall [y] | 60 mm |
| Dimensions - Overall [z] | 44 mm |
| Heat Transfer Type | Liquid to Liquid |
| Operating Temperature [Max] | 62 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 122 W |
| Power - Input | 101 W |
| Voltage | 24 V |
| Weight | 816.5 g |
| Weight | 1.8 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 400.53 | |
| 5 | $ 375.49 | |||
| 10 | $ 365.48 | |||
| 25 | $ 312.91 | |||
Description
General part information
LL-120-24 Series
Liquid to Liquid Thermoelectric Assembly 122 W
