Q8P1BXXY110E

Active

APEM

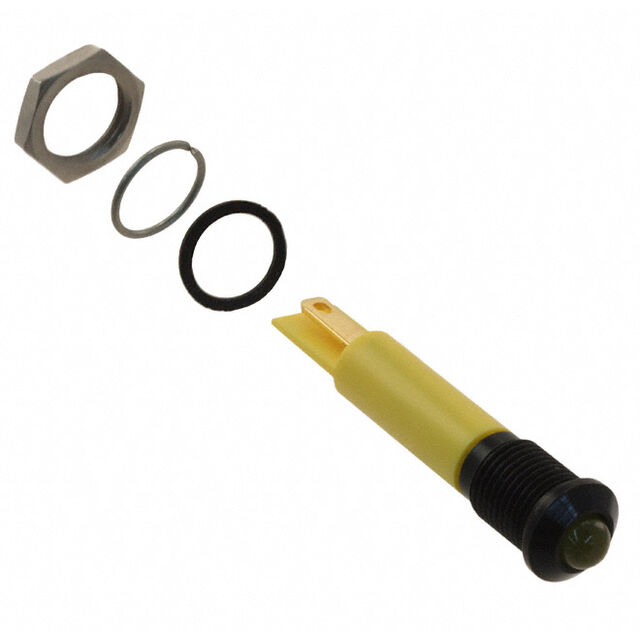

INDICATOR 110V 8MM PROMINENT YEL

Search across all available documentation for this part.

Active

APEM

INDICATOR 110V 8MM PROMINENT YEL

Technical Specifications

Parameters and characteristics for this part

Specification	Q8P1BXXY110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	Yellow
Lens Color	Yellow
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	50 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Solder Lug
Type	LED
Viewing Angle	100 °
Voltage	110 V

Part	Lens Size	Lens Size	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Termination Style	Type	Lens Transparency	Lens Style	Current	Ratings	Lamp Color	Voltage	Viewing Angle	Millicandela Rating	Ingress Protection	Panel Cutout Shape	Lens Color
APEM Q8P1BXXY110E	T-1 3/4	5 mm	0.31 in	7.87 mm	Solder Lug	LED	Diffused	Round with Domed Top	6 mA	AC	Yellow	110 V	100 °	50 mcd	IP67	Round	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Yellow Diffused 100° 110V 6mA Solder Lug
