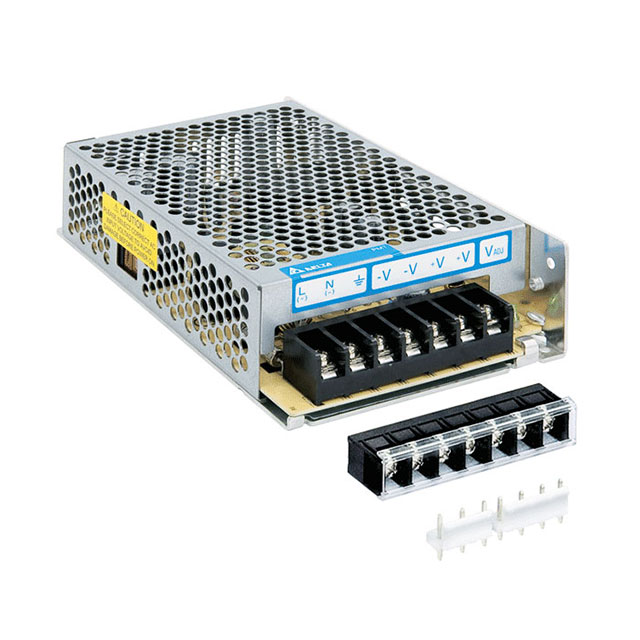

PML-24V100W1AH
ObsoleteDelta Electronics
AC/DC CONVERTER 24V 100W
Deep-Dive with AI
Search across all available documentation for this part.
PML-24V100W1AH
ObsoleteDelta Electronics
AC/DC CONVERTER 24V 100W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PML-24V100W1AH |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, CCC, cURus, TUV |
| Current - Output 1 | 4.5 A |
| Efficiency | 86 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 158 mm |
| Size / Dimension [x] | 6.22 " |
| Size / Dimension [y] | 97 mm |
| Size / Dimension [y] | 3.82 in |
| Size / Dimension [z] | 38 mm |
| Size / Dimension [z] | 1.5 " |
| Type | Open Frame |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 180 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PML-24 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 132 VAC, 180 ~ 264 VAC Input
