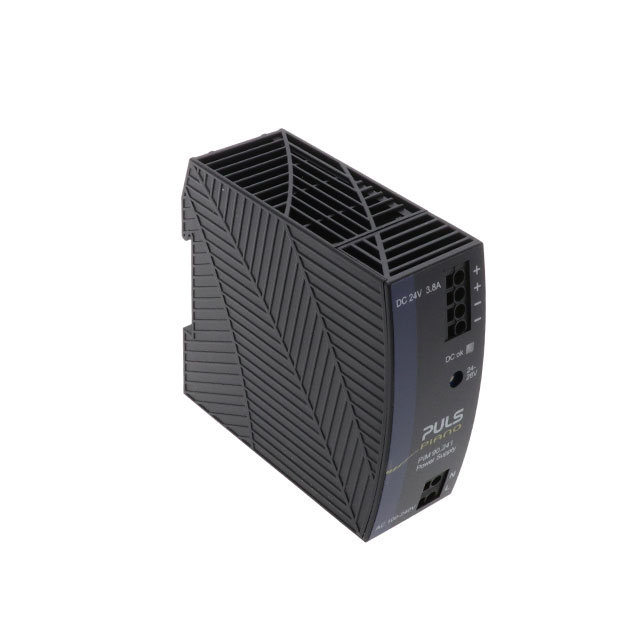

PIM90.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 91W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 91W

Technical Specifications

Parameters and characteristics for this part

Specification	PIM90.241

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	Industrial, ITE (Commercial), Laboratory
Approval Agency	CE, EAC, cULus, CB
Current - Output (Max) [Max]	3.8 A
Efficiency	93.8 %
Features	Adjustable Output, Universal Input
Input Type	AC
Minimum Load Required	True
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	91 W
Size / Dimension [x]	3.58 in
Size / Dimension [x]	91 mm
Size / Dimension [y]	1.42 in
Size / Dimension [y]	36 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Standard Number	UL 508, 62368-1, 61010-1
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Power (Watts)	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Standard Number	Applications	Voltage - Output 1	Number of Outputs	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Type
PULS, LP PIM90.241	3.8 A	93.8 %	500 V	91 W	90 VAC	264 VAC	61010-1 62368-1 UL 508	Industrial ITE (Commercial) Laboratory	24 V	1		-25 °C	70 °C	Adjustable Output Universal Input	CB CE cULus EAC	3.58 in	90 mm	1.42 in	36 mm	3.54 "	91 mm	AC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 121.50

General part information

AC/DC DIN RAIL SUPPLY 24V 91W
