XN2D-4431

Active

Omron Electronics Inc-EMC Div

CONN RCPT 16POS 0.079 GOLD PCB

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN RCPT 16POS 0.079 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	XN2D-4431

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	13 mm
Insulation Height	0.512 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	6.5 mm
Row Spacing - Mating	0.256 in
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	32 V

Part	Fastening Type	Insulation Material	Insulation Color	Mounting Type	Termination	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions	Contact Finish - Post	Contact Material	Connector Type	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Length - Post	Contact Length - Post	Features	Number of Rows
Omron Electronics Inc-EMC Div XN2D-4431	Detent Lock	Polybutylene Terephthalate (PBT)	Black	Through Hole	Press-Fit Solder	Gold	0.079 in	2 mm	UL94 V-0	32 V	6.5 mm	0.256 in	0.203 Ám	8 Áin	Board to Cable/Wire	16	Tin	Copper Alloy	Receptacle	All	13 mm	0.512 in	Female Socket	-30 ░C	75 ░C	Square	0.13 in	3.3 mm
Omron Electronics Inc-EMC Div XN2D-1671	Detent Lock	Polybutylene Terephthalate (PBT)	Black	Through Hole	Press-Fit Solder	Gold	0.079 in	2 mm	UL94 V-0	32 V			0.203 Ám	8 Áin	Board to Cable/Wire	6	Tin	Copper Alloy	Receptacle	All	13 mm	0.512 in	Female Socket	-30 ░C	75 ░C	Square	0.13 in	3.3 mm	Board Guide	1
Omron Electronics Inc-EMC Div XN2D-1371	Detent Lock	Polybutylene Terephthalate (PBT)	Black	Through Hole	Press-Fit Solder	Gold	0.079 in	2 mm	UL94 V-0	32 V			0.203 Ám	8 Áin	Board to Cable/Wire		Tin	Copper Alloy	Receptacle	All	13 mm	0.512 in	Female Socket	-30 ░C	75 ░C	Square	0.13 in	3.3 mm	Board Guide	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

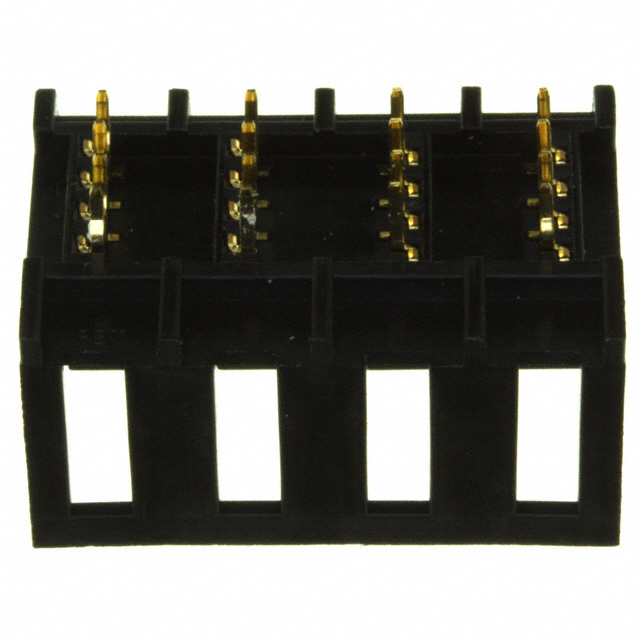

16 (4 x 4 Ports) Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
