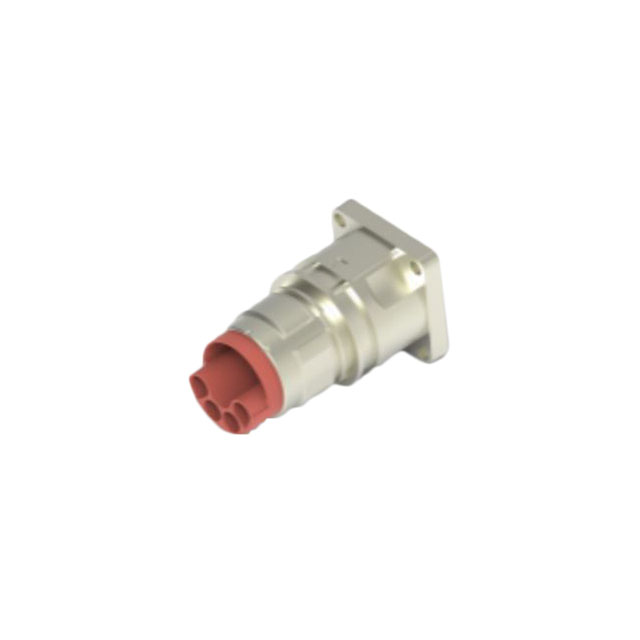

HEC005N00000300000

Active

TE Intercontec

CONN RCPT HSG MALE 11POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 11POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	HEC005N00000300000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	11 (6 + 4 Power + PE)
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Chromate
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-11
Shielding	Unshielded
Type	For Male Pins

Part	Fastening Type	Type	Insert Material	Housing Color	Shell Material	Shell Finish	Shielding	Mounting Feature	Number of Positions	Shell Size - Insert	Ingress Protection	Orientation	Material Flammability Rating	Note	Includes	Connector Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]
TE Intercontec HEC005N00000300000	Push-Twist	For Male Pins	Polyamide (PA66) Nylon 6/6	Silver	Zinc Die Cast	Chromate	Unshielded	Flange	11 (6 + 4 Power + PE)	M23-11	IP66/IP67	Keyed	UL94 V-0	Contacts Not Included	1 Connector 1 O-Ring	Receptacle Housing	Circular	-20 C	130 °C
TE Intercontec HEC005N00000200000	Push-Twist	For Male Pins	Polyamide (PA66) Nylon 6/6	Silver	Zinc Die Cast	Chromate	Unshielded	Flange	11 (6 + 4 Power + PE)	M23-11	IP66/IP67	Keyed	UL94 V-0	Contacts Not Included	1 Connector 1 O-Ring	Receptacle Housing	Circular	-20 C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 (6 + 4 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
