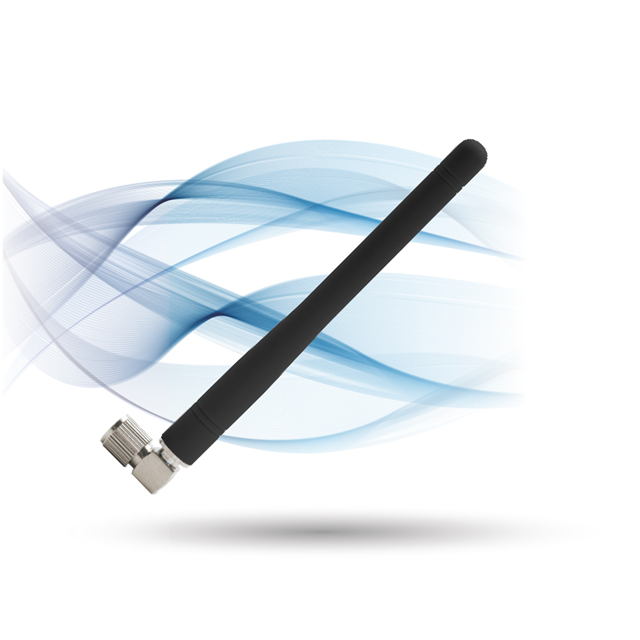

AP-DIPOLE-C-IN-S2-BL
ActiveNimbeLink, LLC
ANTENNA PLUS DIPOLE ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AP-DIPOLE-C-IN-S2-BL |
|---|---|
| Applications | LTE |
| Frequency (Center/Band) | 1.7 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 2.7 GHz |
| Frequency Range [Min] | 700 MHz |
| Height (Max) | 4.567 in |
| Height (Max) | 116 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | Cellular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.38 | |
| 10 | $ 10.73 | |||
| 25 | $ 9.52 | |||
| 100 | $ 8.15 | |||
| 250 | $ 8.13 | |||
Description
General part information
AP-DIPOLE Series
RF ANTENNA LTE Whip, Right Angle SMA Male Connector Mount
