4267-D

Active

BRADY

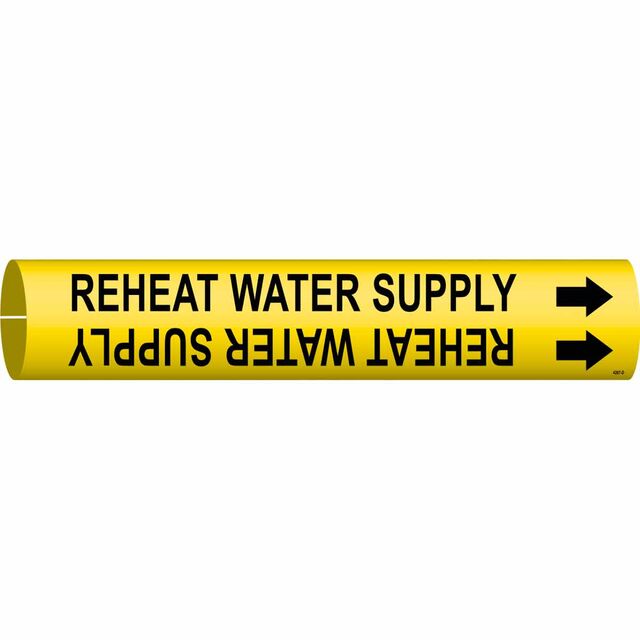

4267-D REHEAT WATER SUPPLY BLK/Y

Search across all available documentation for this part.

Active

BRADY

4267-D REHEAT WATER SUPPLY BLK/Y

Technical Specifications

Parameters and characteristics for this part

Specification	4267-D

Application Specifics	Water Fluids
Applications	Pipe
Arrangement	Symbol and Text
Color - Background	Yellow
Color - Legend	Black
Features	Chemical Resistant, Abrasion Resistant
Language	English
Legend (Symbol Only)	Directional Arrow
Legend (Text)	Reheat Water Supply
Length	71.44 mm
Length	2.813 in
Location	Outdoor
Material - Body	Plastic
Mounting Type	Snap On
Outside Pipe Diameter (Min) [Min] [diameter]	152.4 mm
Outside Pipe Diameter (Min) [Min] [diameter]	6 in
Print Type	Pre-Printed
Shape	Square
Width [y]	71.44 mm
Width [y]	2.813 in

Part	Color [custom]	Color [custom]	Material	Label Size [x]	Label Size [y]	Label Type	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Legend (Symbol Only)	Application Specifics	Language	Shape	Legend (Text)	Material - Body	Print Type	Arrangement	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Applications	Color - Background	Length	Length	Mounting Type	Location	Color - Legend	Width [y]	Width [y]	Features	Label Size [x]	Label Size [y]	Label Size [y]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]
BRADY 4267-A	Black	Yellow	Plastic	0.81 in 20.6 mm	203.2 mm	Reheat Water Supply
BRADY 4267-C	Black	Yellow	Plastic			Reheat Water Supply	50.8 mm	2 in	330.2 mm	13 in
BRADY 4267-D											Directional Arrow	Water Fluids	English	Square	Reheat Water Supply	Plastic	Pre-Printed	Symbol and Text	152.4 mm	6 in	Pipe	Yellow	71.44 mm	2.813 in	Snap On	Outdoor	Black	71.44 mm	2.813 in	Abrasion Resistant Chemical Resistant
BRADY 4267-G	Black	Yellow	Plastic	609.6 mm		Reheat Water Supply																									24 in	254 mm	10 in
BRADY 4267-B	Black	Yellow	Plastic			Reheat Water Supply																												0.88 "	228.6 mm	9 "	22.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.18

General part information

4267-D REHEAT WATER SUPPLY BLK/Y

Technical documentation and resources
