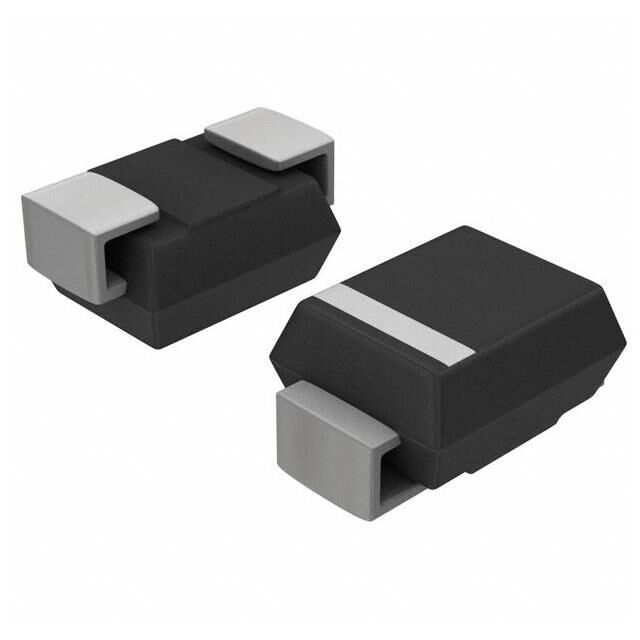

1.5SMC20CA-E3/9AT
ActiveVishay General Semiconductor - Diodes Division
TVS DIODE 17.1VWM 27.7V DO214AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.5SMC20CA-E3/9AT
ActiveVishay General Semiconductor - Diodes Division
TVS DIODE 17.1VWM 27.7V DO214AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.5SMC20CA-E3/9AT |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | DO-214AB (SMCJ) |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 19 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 27.7 V |
| Voltage - Reverse Standoff (Typ) | 17.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3500 | $ 0.22 | |
| 7000 | $ 0.20 | |||
| 10500 | $ 0.19 | |||
| 17500 | $ 0.18 | |||
| 24500 | $ 0.18 | |||
Description
General part information
1.5SMC20 Series
27.7V Clamp 54.2A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
