6282-8SG-522

Active

Conxall/Switchcraft

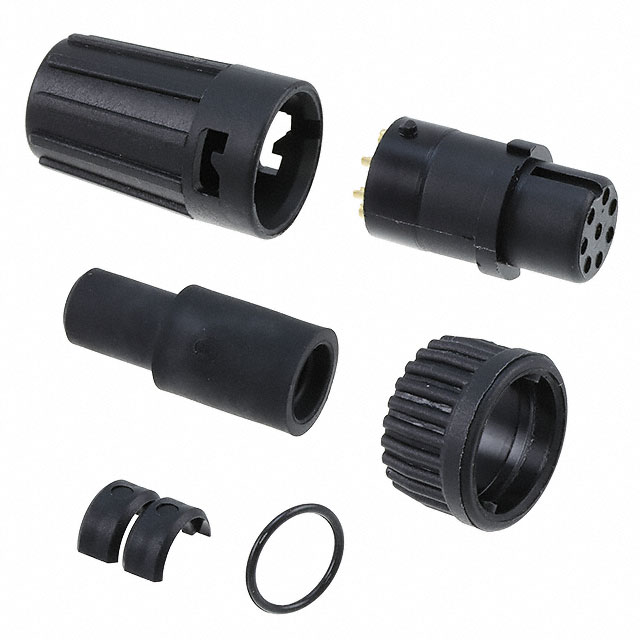

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-8SG-522

Active

Conxall/Switchcraft

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6282-8SG-522

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	6.35 mm
Cable Opening [Max] [diameter]	0.25 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

6282-8SG Series

Part	Primary Material	Current Rating (Amps)	Features	Number of Positions	Backshell Material, Plating	Mounting Type	Contact Finish - Mating	Shielding	Fastening Type	Contact Material	Orientation	Connector Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Applications	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6282-8SG-516	Plastic	Varies by Wire Gauge	Backshell	8	Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Unshielded	Bayonet Lock	Brass	Keyed	Female Sockets Plug	0.16 in	0.18 in	4.06 mm	4.57 mm	Black	600 V	-40 °C	115 °C	Weathertight	Automotive Communication Systems Instrumentation
Conxall/Switchcraft 6282-8SG-522	Plastic	Varies by Wire Gauge	Backshell	8	Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Unshielded	Bayonet Lock	Brass	Keyed	Female Sockets Plug					Black	600 V	-40 °C	115 °C	Weathertight	Automotive Communication Systems Instrumentation	6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6282-8SG-3DC	Plastic	Varies by Wire Gauge	Backshell	8	Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Unshielded	Bayonet Lock	Brass	Keyed	Female Sockets Plug					Black	600 V	-40 °C	115 °C	Weathertight	Automotive Communication Systems Instrumentation
Conxall/Switchcraft 6282-8SG-315	Plastic	Varies by Wire Gauge	Backshell	8	Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Unshielded	Bayonet Lock	Brass	Keyed	Female Sockets Plug					Black	600 V	-40 °C	115 °C	Weathertight	Automotive Communication Systems Instrumentation					0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 6282-8SG-321	Plastic	Varies by Wire Gauge	Backshell	8	Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Unshielded	Bayonet Lock	Brass	Keyed	Female Sockets Plug					Black	600 V	-40 °C	115 °C	Weathertight	Automotive Communication Systems Instrumentation		0.23 in	0.21 in	5.33 mm			5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.26
		10	$ 18.70
		25	$ 16.93
		50	$ 15.73
		100	$ 14.65
		250	$ 13.38
		500	$ 12.52

Description

General part information

6282-8SG Series

8 Position Circular Connector Plug, Female Sockets Solder Cup
