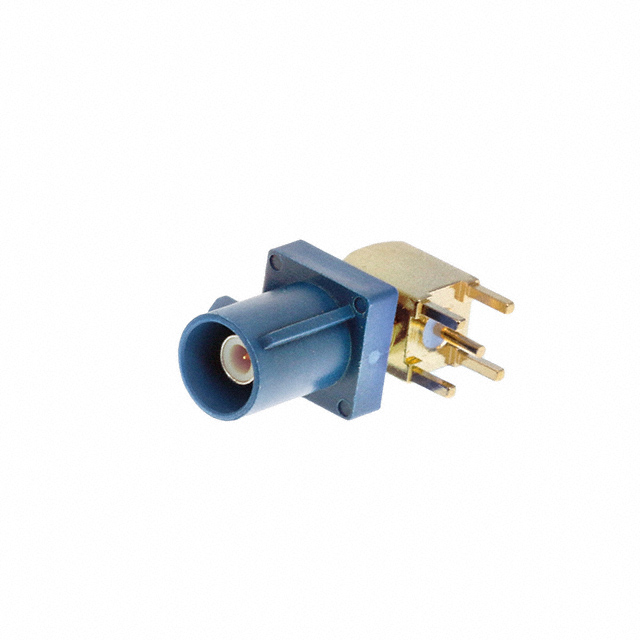

RF55-33C-T-00-50-A-SH

Active

Adam Tech

FAKRA PLUG SMB TYPE: RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

RF55-33C-T-00-50-A-SH

Active

Adam Tech

FAKRA PLUG SMB TYPE: RIGHT ANGLE

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF55-33C-T-00-50-A-SH

Body Finish	Nickel, Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Fastening Type	Locking Ramp
Features	Code C
Frequency - Max [Max]	4 GHz
Housing Color	Blue
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

RF55-33 Series

Part	Center Contact Plating	Body Finish	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Impedance	Shield Termination	Housing Color	Number of Ports	Features	Connector Type	Contact Termination	Frequency - Max [Max]	Body Material	Fastening Type	Center Contact Material
Adam Tech RF55-33N-T-00-50-A-SH	Gold	Gold Nickel	Through Hole Right Angle	85 °C	-40 °C	Fakra SMB	50 Ohms	Solder	Green Pastel	1	Code N	Male Pin Plug	Solder	4 GHz	Brass	Locking Ramp	Phosphor Bronze
Adam Tech RF55-33E-T-00-50-A-SH	Gold	Gold Nickel	Through Hole Right Angle	85 °C	-40 °C	Fakra SMB	50 Ohms	Solder	Green	1	Code E	Male Pin Plug	Solder	4 GHz	Brass	Locking Ramp	Phosphor Bronze
Adam Tech RF55-33I-T-00-50-A-SH	Gold	Gold Nickel	Through Hole Right Angle	85 °C	-40 °C	Fakra SMB	50 Ohms	Solder	Beige	1	Code I	Male Pin Plug	Solder	4 GHz	Brass	Locking Ramp	Phosphor Bronze
Adam Tech RF55-33C-T-00-50-A-SH	Gold	Gold Nickel	Through Hole Right Angle	85 °C	-40 °C	Fakra SMB	50 Ohms	Solder	Blue	1	Code C	Male Pin Plug	Solder	4 GHz	Brass	Locking Ramp	Phosphor Bronze
Adam Tech RF55-33B-T-00-50-A-SH	Gold	Gold Nickel	Through Hole Right Angle	85 °C	-40 °C	Fakra SMB	50 Ohms	Solder	White	1	Code B	Male Pin Plug	Solder	4 GHz	Brass	Locking Ramp	Phosphor Bronze
Adam Tech RF55-33M-T-00-50-A-SH	Gold	Gold Nickel	Through Hole Right Angle	85 °C	-40 °C	Fakra SMB	50 Ohms	Solder	Orange Pastel	1	Code M	Male Pin Plug	Solder	4 GHz	Brass	Locking Ramp	Phosphor Bronze
Adam Tech RF55-33K-T-00-50-A-SH	Gold	Gold Nickel	Through Hole Right Angle	85 °C	-40 °C	Fakra SMB	50 Ohms	Solder	Curry	1	Code K	Male Pin Plug	Solder	4 GHz	Brass	Locking Ramp	Phosphor Bronze
Adam Tech RF55-33A-T-00-50-A-SH	Gold	Gold Nickel	Through Hole Right Angle	85 °C	-40 °C	Fakra SMB	50 Ohms	Solder	Black	1	Code A	Male Pin Plug	Solder	4 GHz	Brass	Locking Ramp	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.98
		10	$ 2.28
		25	$ 2.06
		40	$ 1.95
		80	$ 1.81
		230	$ 1.71
