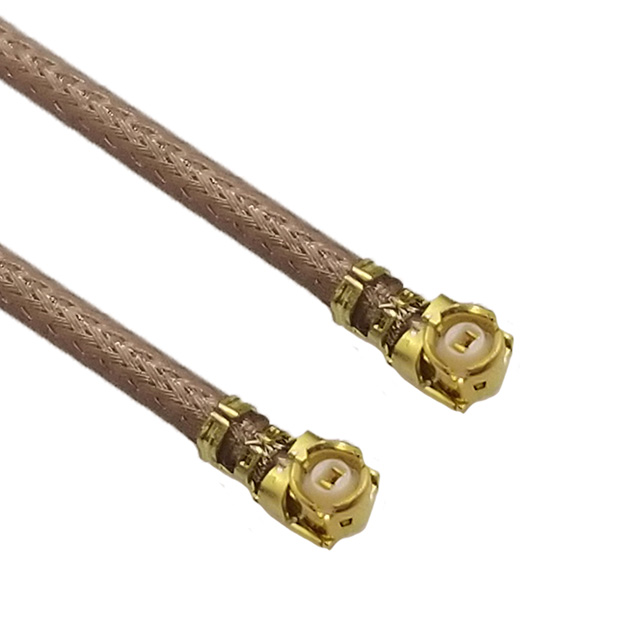

CBL ASSY IPEX MHF1 PLUG-PLUG 1"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBG-2IPX-1IN-6O
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF1 PLUG-PLUG 1"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBG-2IPX-1IN-6O |
|---|---|
| 1st Connector | Right Angle, IPEX MHF1 Plug, U.FL (UMCC) |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC), IPEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Copper |
| Features | Opposite Orientation, Shielded |
| Frequency - Max [Max] | 9 GHz |
| Length [x] | 1 in |
| Length [x] | 25.4 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1 |
CBG-2IPX Series
| Part | Cable Type | 1st Connector | Operating Temperature [Max] | Operating Temperature [Min] | Overall Impedance | 2nd Connector | 1st Connector Mounting Type | Features | 2nd Connector Mounting Type | 1st Contact Gender | Style | Length | Length | Frequency - Max [Max] | Cable Impedance | Color | 2nd Contact Gender | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 9.5 in | 241.3 mm | 9 GHz | 50 Ohms | Copper | Female | ||
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 9 " | 228.6 mm | 9 GHz | 50 Ohms | Copper | Female | ||
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 4.5 in | 114.3 mm | 9 GHz | 50 Ohms | Copper | Female | ||
Lighthorse Technologies, Inc | RG-178 | I-PEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | I-PEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 10.5 in | 266.7 mm | 9 GHz | 50 Ohms | Copper | Female | ||
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 5 in | 127 mm | 9 GHz | 50 Ohms | Copper | Female | ||
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 9 GHz | 50 Ohms | Copper | Female | 1 in | 25.4 mm | ||
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 9 GHz | 50 Ohms | Copper | Female | 5.5 in | 139.7 mm | ||
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 2 in | 50.8 mm | 9 GHz | 50 Ohms | Copper | Female | ||
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 1.5 " | 38.1 mm | 9 GHz | 50 Ohms | Copper | Female | ||
Lighthorse Technologies, Inc | RG-178 | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 90 °C | -40 °C | 50 Ohms | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | Opposite Orientation Shielded | Free Hanging (In-Line) | Female | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 9 GHz | 50 Ohms | Copper | Female | 2.5 in | 63.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.41 | |
| 10 | $ 4.15 | |||
| 25 | $ 3.92 | |||
| 50 | $ 3.71 | |||
| 100 | $ 3.52 | |||
| 250 | $ 3.20 | |||
| 500 | $ 2.94 | |||
| 1000 | $ 2.71 | |||
Description
General part information
CBG-2IPX Series
Cable Assembly Coaxial U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 RG-178 1.000" (25.40mm)
